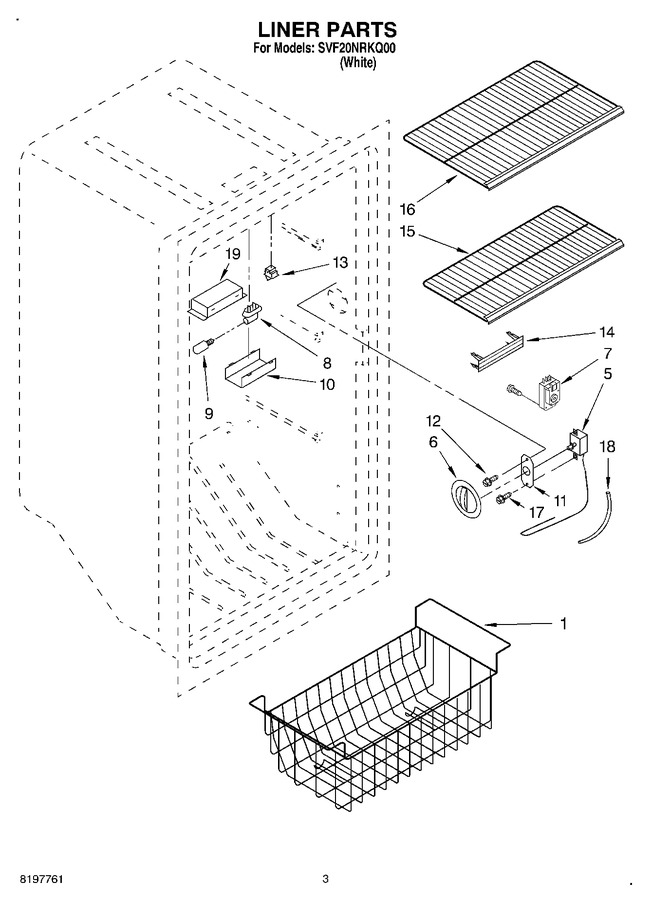

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Liner
03 - Door
04 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390632 | Basket |
|
- | |||||
| 5 | WP4-83053-003 | Thermostat (Replaces: 4390631) |
|
$ 229.46 | |||||
| 6 | 4390619 | Knob, Thermostat |
|
- | |||||
| 7 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 179.23 | ||||
| 8 | 4356874 | Socket, Lamp |
|
- | |||||
| 9 | W10873798 | Bulb, Light (Replaces: 4356311) |
|
Immediately | $ 13.16 | ||||
| 10 | 4357285 | Shield, Light |
|
- | |||||
| 11 | 1-81154 | Thermostat, Plate (Replaces: 4357287) |
|
$ 13.50 | |||||
| 12 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 3.84 | |||||
| 13 | W11384469 | Light, Switch (Replaces: 4390513) |
|
Immediately | $ 35.18 | ||||
| 14 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 12.15 | |||||
| 15 | 4357151 | Shelf, Lower |
|
- | |||||
| 16 | 4396979 | Shelf, Upper |
|
- | |||||
| 17 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 13.25 | ||||
| 18 | WP2196003 | Tubing, Thermostat (Replaces: 4356800) |
|
$ 7.52 | |||||
| 19 | 4390630 | Bracket, Light |
|
- |
