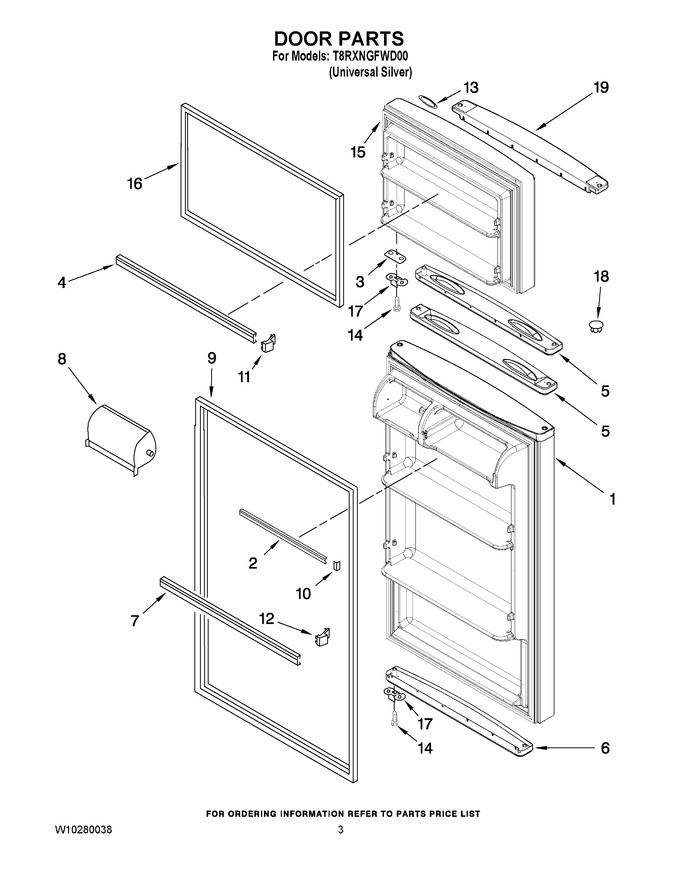

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10130250 | Refrigerator Door (includes Illus. 5,6 & 9) (universal Silver) |
|
- | |||||
| 2 | W11129820 | Trim, Door Shelf (Replaces: 2266729) |
|
Immediately | $ 114.61 | ||||
| 3 | 2258681B | Shim, Door Stop |
|
$ 40.80 | |||||
| 4 | WP2266727 | Trim, Door Shelf (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 5 | 2222045 | Handle, Endcap |
|
$ 41.70 | |||||
| 6 | 2222048 | End Cap-bottom |
|
- | |||||
| 7 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 100.52 | |||||
| 8 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 65.89 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (Replaces: 2264723) |
|
$ 291.47 | |||||
| 10 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 11 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 83.86 | ||||
| 14 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 15 | W10130249 | Freezer Door (includes Illus. 5,16 & 20) (universal Silver) |
|
- | |||||
| 16 | WP2319263B | Door Gasket, Magnetic (Replaces: 2264722) |
|
$ 241.45 | |||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | WP2212651 | Hole Plug (Replaces: 2212651) |
|
$ 21.79 | |||||
| 19 | 2252863 | End Cap-top |
|
Immediately | $ 139.98 |
