01 - Section
02 - Section
03 - Section
New Model Search:

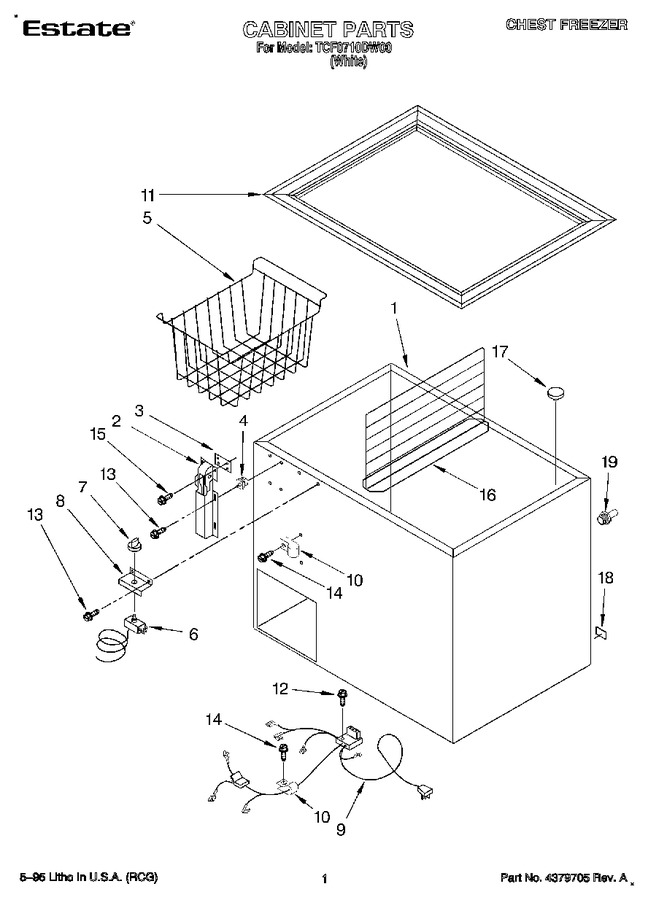

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356551 | Hinge Assembly |
|
- | |||||
| 3 | 1-17548-006 | Hinge Spacer (Replaces: 4356369) |
|
$ 19.58 | |||||
| 4 | 4356321 | Grommet, Plastic |
|
$ 12.30 | |||||
| 5 | 8210434A | Wire Basket (Replaces: 4356354) |
|
$ 81.83 | |||||
| 6 | 4356323 | Thermostat |
|
- | |||||
| 7 | 4356324 | Thermostat, Knob |
|
- | |||||
| 8 | 4356499 | Thermostat, Control Bracket |
|
- | |||||
| 9 | 4356495 | External, Wiring Harness |
|
- | |||||
| 10 | 488946 | Plastic, Clip (2) (Replaces: 4356328) |
|
$ 19.32 | |||||
| 11 | 4356475 | Breaker Strip |
|
- | |||||
| 12 | 487980 | Screw |
|
- | |||||
| 13 | WP308685 | Screw (Replaces: 308685) |
|
Immediately | $ 7.08 | ||||
| 14 | W11233072 | Screw (Replaces: 4356496) |
|
Immediately | $ 13.25 | ||||
| 15 | 4356491 | Screw |
|
- | |||||
| 16 | 4356529 | Divider |
|
- | |||||
| 17 | 4356456 | Drain, Cap |
|
- | |||||
| 18 | 4356455 | Drain, Plug |
|
- | |||||
| 19 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 19 | W11663505 | Adapter (Replaces: 4356481) |
|
$ 16.23 | |||||
| 19 | 4356489 | Clip, Gasket (kit Of 60) |
|
- | |||||
| 19 | 350930 | Xenamel, White (13 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 | ||||
| 19 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| LIT2165304 | Use & Care Guide |
|
- |
