01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:

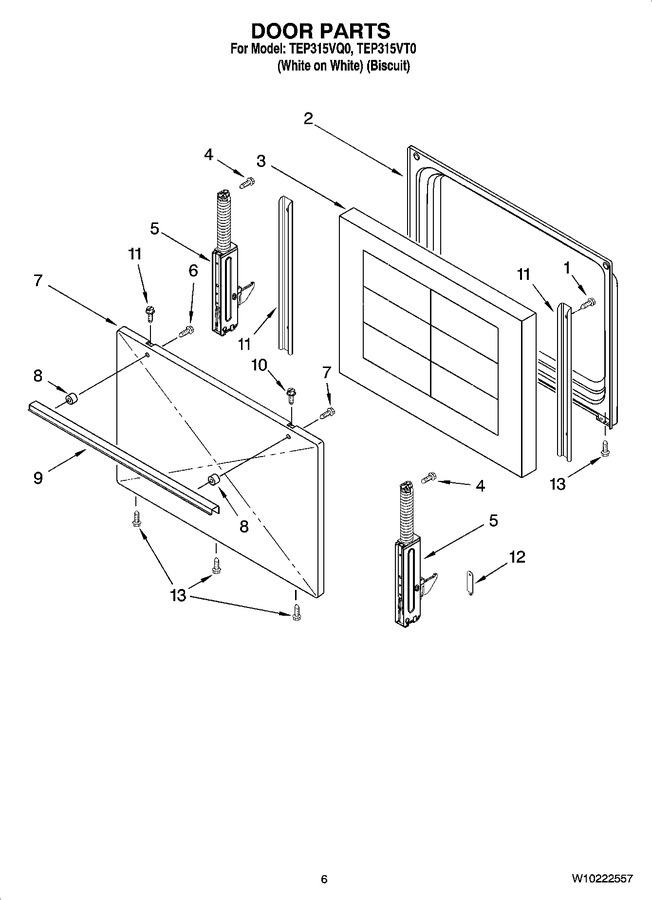

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 2 | 9761342 | Liner |
|
- | |||||
| 3 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 5 | W10368723 | Hinge (2) (Replaces: 9761495) |
|
- | |||||
| 6 | WP3196163 | Screw (Replaces: 3196163) |
|
$ 6.57 | |||||
| 7 | W10903447 | Panel, Steel (white) (Replaces: 3195560) |
|
$ 229.24 | |||||
| 7 | 8273522 | Panel, Steel (biscuit) |
|
- | |||||
| 8 | 8273879 | Spacer, Handle (biscuit) |
|
- | |||||
| 8 | WP3196143 | Spacer, Handle (white) (Replaces: 3196143) |
|
$ 6.57 | |||||
| 9 | 8273506 | Handle, Oven Door (biscuit) |
|
- | |||||
| 9 | WP3195263 | Handle, Oven Door (white) (Replaces: 3195263) |
|
$ 185.99 | |||||
| 10 | 3196558 | Screw, Top (white) |
|
- | |||||
| 10 | 3196559 | Screw, Top (biscuit) |
|
- | |||||
| 11 | W11699790 | Bracket, Door (Replaces: 9761504) |
|
- | |||||
| 12 | 9761517 | Clip, Door Mntg |
|
$ 43.30 | |||||
| 13 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 25.69 | |||||
| W11616883 | Harness, Main (Replaces: W10113076) |
|
$ 159.21 | ||||||
| W11396691 | Harness, Cooktop (Replaces: W10196280) |
|
$ 170.78 | ||||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 78.23 | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up (Replaces: 242756) |
|
Immediately | $ 78.50 | |||||
| 261582 | Self-clean(1/2 Pt) Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 46.58 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 |
