01 - Cooktop Parts

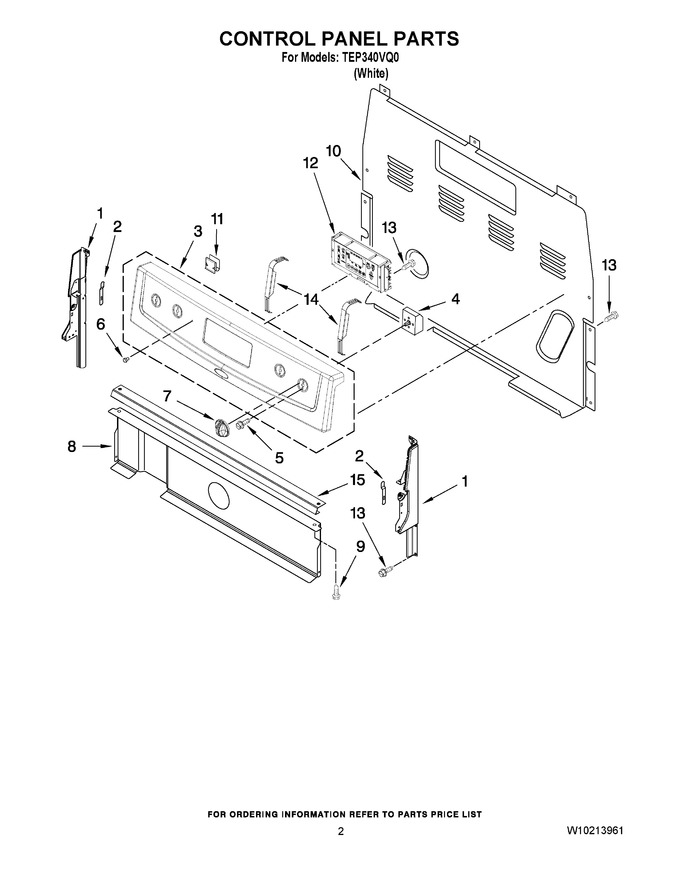

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (right Hand) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W10202190 | Panel, Console |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (lr & Rf (green)) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 4 | WP3148952 | Switch, Infinite (lf/rr - (yellow)) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WPW10203524 | Knob, Infinite (4) (Replaces: W10203524) |
|
$ 19.64 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | 3196166 | Screw |
|
$ 6.62 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 12 | WPW10476684 | Control, Range (Replaces: W10173529) |
|
Immediately | $ 226.17 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 15 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 88.97 |
