Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.62

1 313191 End Trim R.h. Appelez-nous -
1 313190 End Trim L.h. Appelez-nous -
2 254225 Screw, 8bt X 1/4 (4) Appelez-nous -
2 313230 End Cap R.h. Appelez-nous -
2 313231 End Cap L.h. Appelez-nous -
3 309822 Motor, Timer Appelez-nous -
4 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 10.68

4 3149834 Timer, Auto Appelez-nous -
5 313513 Glass, Timer Appelez-nous -
6 312604 Screw 8-18 X 5/8 (4) Appelez-nous -
6 3150433 Panel, Control Appelez-nous -
6 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.62

7 WP3149400 Switch, Infinite (8`` (2) Lr-rf)   (Replaces: 3148954) In-Stock Immediately $ 81.46

7 WP3148952 Switch, Infinite (6`` (2) Lf, Rr)   (Replaces: 3148952) In-Stock Immediately $ 62.56

7 WP486579 Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865) Special Order $ 7.10

8 WP965173 Screw, No.8 X .31   (Replaces: 3150344) In-Stock Immediately $ 10.68

8 3148419 Switch, Selector Appelez-nous -
9 3148933 Thermostat, Oven Special Order $ 181.60

9 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 7.47

10 3150647 Light, Indicator (includes No.16) Appelez-nous -
11 314031 Light, Indicator (includes Illus. 16) Special Order $ 62.88

12 WP3149983 Knob, Control (4)   (Replaces: 3149982) Special Order $ 21.95

13 3181370 Knob, Thermostat Special Order $ 25.07

14 313570 Tube Clip Appelez-nous -
15 313195 Rear Cover Control Panel Appelez-nous -
15 WP681414 Screw, 10-16 X 1/2 (8)   (Replaces: 343641) In-Stock Immediately $ 7.62

16 313101 Lens, Amber (2) Appelez-nous -
17 3169182 Knob, Timer (3) Appelez-nous -
18 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 10.68

18 313608 Shield, Glass (2) Appelez-nous -
19 3181372 Knob, Selector Appelez-nous -
20 WP4314961 Rocker Switch   (Replaces: 3148564) Special Order $ 84.56


    View Diagram in Separate Window     Print Icon   Print Part List

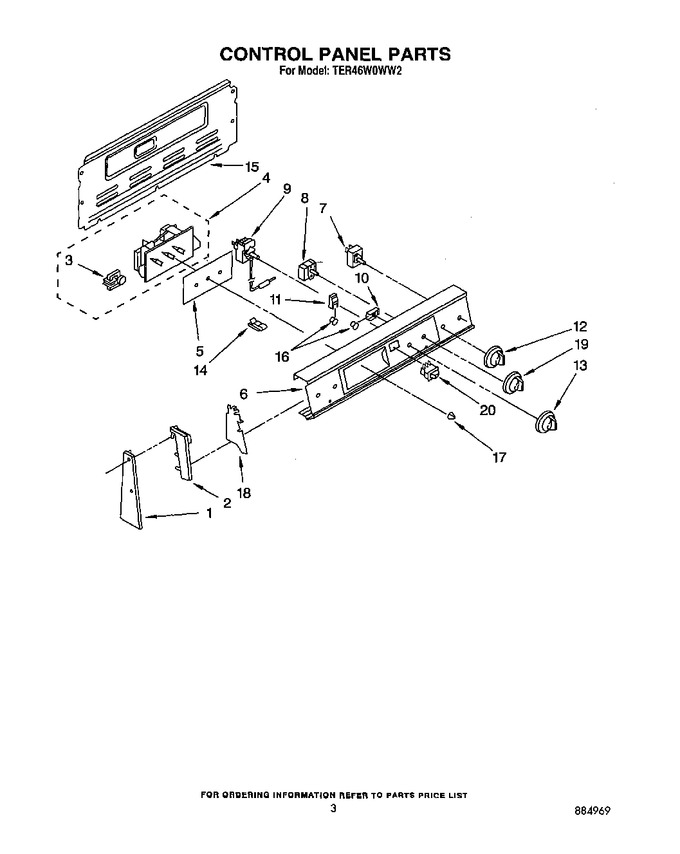

Diagram for TER46W0WW2
