SELECT A DIAGRAM

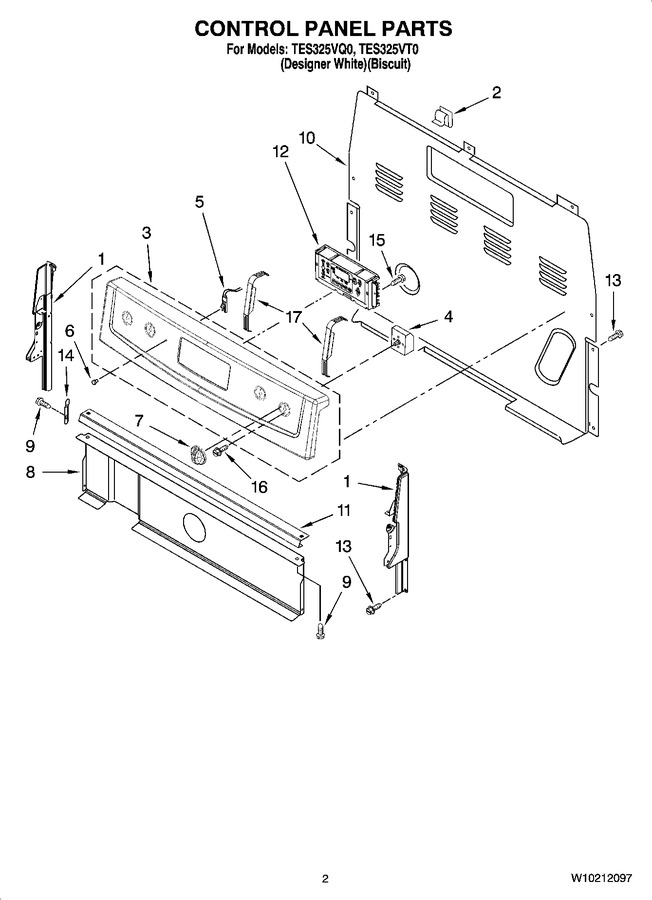

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10009040)				$ 38.21
1	W11219370		Endcap (white Right Hand)   (Replaces: W10009050)				$ 54.75
1	W10009060		Endcap (biscuit Left Hand)		Appelez-nous	-
1	W11230612		Endcap (biscuit Right Hand)   (Replaces: W10009070)		Appelez-nous	-
2	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
3	W10202195		Panel, Control (white)		Appelez-nous	-
3	W10202193		Panel, Control (biscuit)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 62.56
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 5.63
7	W10203529		Knob, Infinite (4) (biscuit)		Appelez-nous	-
7	WPW10203524		Knob, Infinite (4) (white)   (Replaces: W10203524)				$ 19.64
8	8053912		Shield, Heat				$ 34.55
9	3196166		Screw				$ 6.62
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 88.97
12	WPW10173539		Control, Range (biscuit)   (Replaces: W10173539)				$ 337.28
12	WPW10173537		Control, Range (white)   (Replaces: W10173537)				$ 415.56
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	3196200		Clip, Spring				$ 9.41
15	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
17	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 76.33
