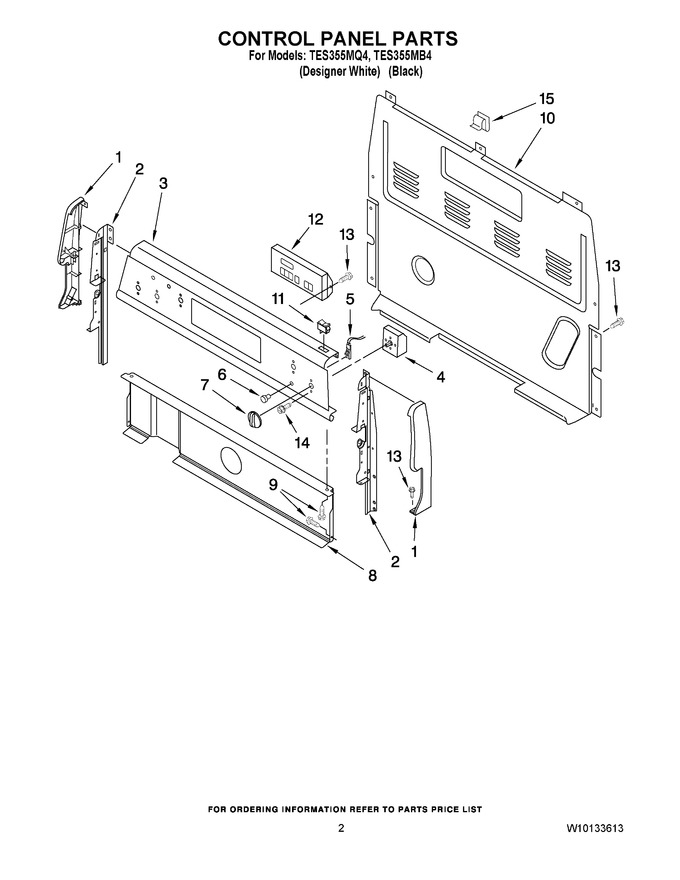

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (white Left Hand)		Appelez-nous	-
1	3186188		Endcap (black Left Hand)		Appelez-nous	-
1	3186189		Endcap (black Right Hand)		Appelez-nous	-
1	3186191		Endcap (white Right Hand)		Appelez-nous	-
2	8523408		Support, Endcap (left Hand)		Appelez-nous	-
2	8523409		Support, Endcap (right Hand)		Appelez-nous	-
3	W10134203		Panel, Backguard (black)		Appelez-nous	-
3	W10119168		Panel, Backguard (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (right Front)   (Replaces: 3148953)			Immediately	$ 49.03
4	WP3148952		Switch, Infinite (right Rear)   (Replaces: 3148952)			Immediately	$ 62.56
5	WP8523265		Light, Indicator Surface Unit   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 5.63
7	3196232		Knob, Infinite (white)				$ 16.71
7	WP3196231		Knob, Infinite (black)   (Replaces: 3196231)			Immediately	$ 19.80
8	8523280		Shield, Heat		Appelez-nous	-
9	W10276642		Screw   (Replaces: 4449746)				$ 5.77
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	3149360		Switch, Rocker (white)				$ 89.01
11	WP4314961		Switch, Rocker (black)   (Replaces: 3148564)				$ 84.56
12	WP6610456		Control, Range (black)   (Replaces: 6610456)				$ 406.40
12	WP6610457		Control, Range (white)   (Replaces: 6610457)				$ 411.04
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
15	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
