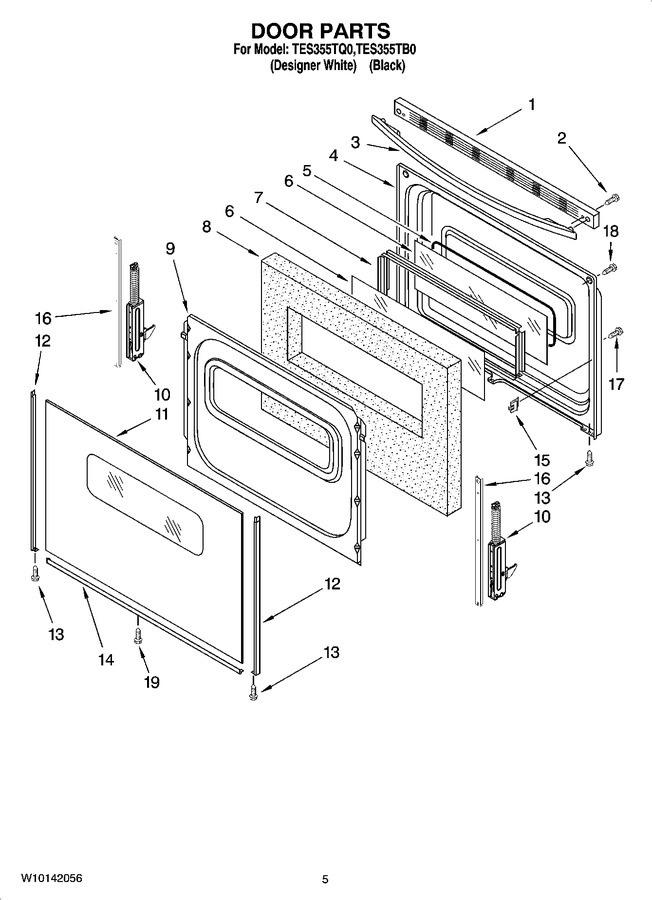

04 - Door Parts


05 - Drawer & Broiler Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10016380		Trim, Door Top (black)				$ 80.76
1	W10016370		Trim, Door Top (white)				$ 79.85
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 9.93
3	WPW10202217		Handle, Door (black)   (Replaces: 3195922)				$ 243.59
3	WPW10202216		Handle, Door (white)   (Replaces: 8522444)				$ 333.60
4	9761340		Liner, Door				$ 325.01
5	8522415		Seal, Window				$ 75.50
6	WP9758164		Glass, Inner (2)   (Replaces: 9758164)				$ 143.94
7	3186290		Frame, Glass		Appelez-nous	-
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 91.23
9	9761499		Retainer, Insul.				$ 292.80
10	W10347466		Hinge, Door (2)   (Replaces: 9761493)			Immediately	$ 197.86
11	WP9762477		Glass, Outer Door (black)   (Replaces: 8053479)				$ 297.11
11	WP9762476		Glass, Outer Door (white)   (Replaces: 8053481)				$ 299.39
12	W10761014		Trim, Side (black Right Hand)   (Replaces: W10128562)			Immediately	$ 65.66
12	W10761018		Trim, Side (black Left Hand)   (Replaces: W10128571)			Immediately	$ 49.32
12	WP8523166		Trim, Side (white Right Hand)   (Replaces: W10128563)			Immediately	$ 75.81
12	WP8523172		Trim, Side (white Left Hand)   (Replaces: W10128572)			Immediately	$ 62.94
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 55.23
14	WP8523177		Trim, Lower (black)   (Replaces: 8523177)				$ 149.27
15	3196025		Clip, Glass (4)				$ 20.10
16	W11502236		Strap, Door (2)   (Replaces: W10113759)			Immediately	$ 24.91
17	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
