SELECT A DIAGRAM

01 - Motor And Drive , Lit/optional


02 - Frame


03 - Power Screw And Ram


04 - Container


05 - Cabinet And Control


06 - Accessory

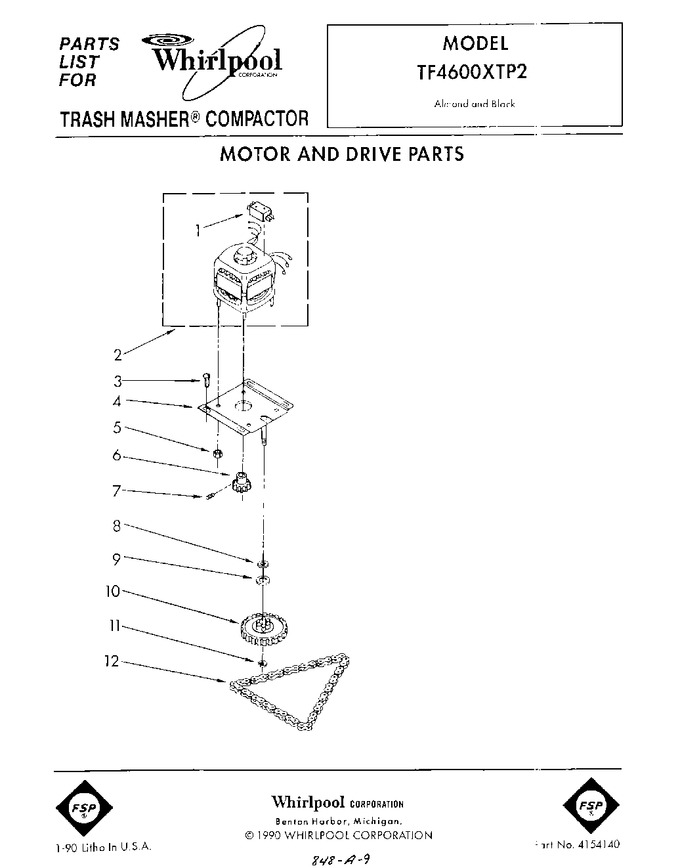

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439651		Switch, Motor   (Replaces: 777710)				$ 308.87
2	W10439651		Motor, Drive (includes No.1)   (Replaces: 780360)				$ 308.87
3	776593		Screw. 1/4-20 X 1/2 (4)		Appelez-nous	-
4	776327		Plate, Motor		Appelez-nous	-
5	WP776338		Locknut, 10-32 (4)   (Replaces: 776338)				$ 18.29
6	882699		Gear, Drive   (Replaces: 4149667)				$ 111.20
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.13
8	776035		Washer, Wave				$ 12.65
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 12.82
10	882699		Gear, Driven   (Replaces: 777124)				$ 111.20
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.02
12	4152077		Harness, Wiring		Appelez-nous	-
12	780477		Chain, Drive				$ 195.36
	LIT4153303		Guide, Use And Care		Appelez-nous	-
	LIT4154140		List, Repair Parts		Appelez-nous	-
	LIT780487		Sheet, Tech And Wiring Diagram		Appelez-nous	-
	LIT780142		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
