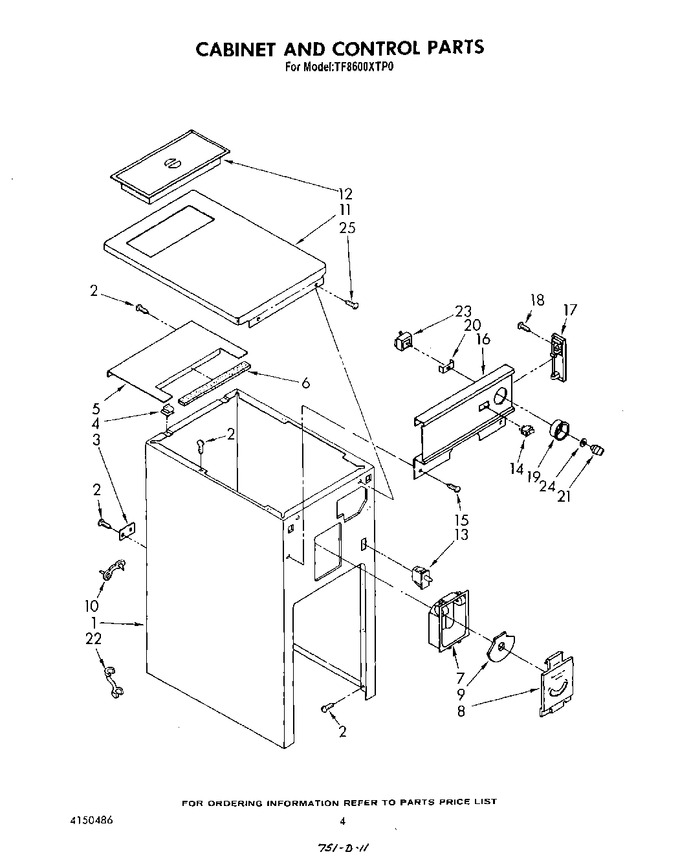

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608843		Cabinet		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 7.56
3	775676		Plate, Power Cord		Appelez-nous	-
4	776017		Clip, Toe Mount		Appelez-nous	-
5	780438		Plate, Bag Storage		Appelez-nous	-
6	776780		Barrier, Glass		Appelez-nous	-
7	777642		Compartment, Air Flow		Appelez-nous	-
8	608783		Cover, Air Flow		Appelez-nous	-
9	608782		Dail, Air Flow		Appelez-nous	-
10	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
11	608720		Top, Cabinet		Appelez-nous	-
12	780081		Lid, Bag Storage		Appelez-nous	-
13	780421		Switch, Drawer Tilt		Appelez-nous	-
14	WP4314961		Switch, Rocker   (Replaces: 780398)				$ 84.56
15	776559		Screw, 6-20 X 3/8ab		Appelez-nous	-
16	4150405		Escutcheon, Control		Appelez-nous	-
17	780179		End Cap, Escutcheon (l.h.)		Appelez-nous	-
17	780180		End Cap, Escutcheon R.h.		Appelez-nous	-
18	WP489069		Screw, 8-18 X 1/2 (4)   (Replaces: 780230)			Immediately	$ 7.56
19	780387		Bezel, Escutcheon		Appelez-nous	-
20	780417		Bracket, Switch		Appelez-nous	-
21	776594		Knob, Switch   (Replaces: 780392)				$ 27.24
22	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
23	675382		Switch, Rotary   (Replaces: 608824)				$ 221.83
24	WP777383		Nut, Switch   (Replaces: 777383)				$ 11.55
25	776493		Screw, 8-18 X 1/2		Appelez-nous	-
