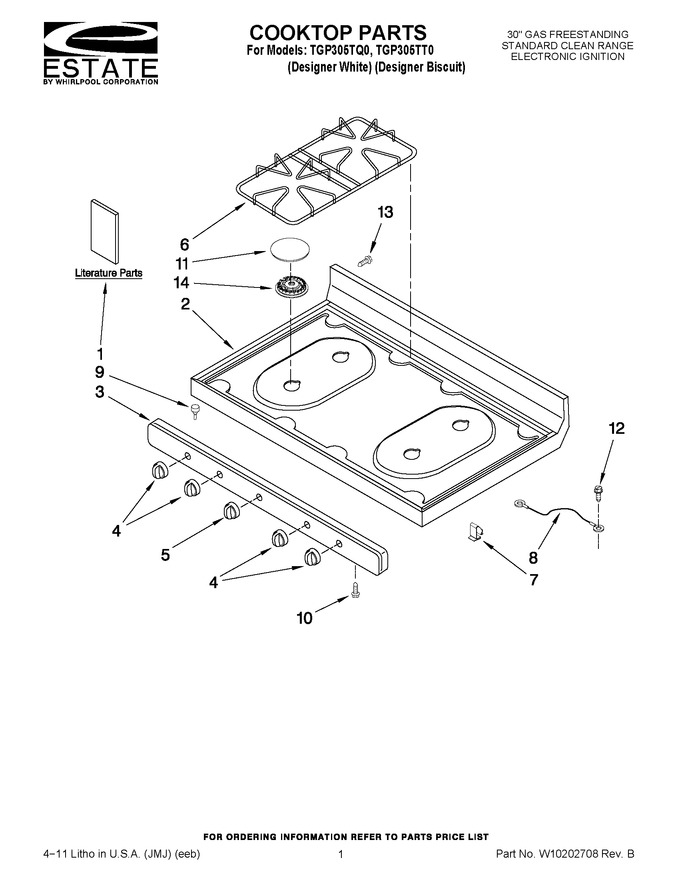

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10130752 | Instructions Installation |
|
- | |||||
| 1 | W10121768 | Guide, Use & Care |
|
- | |||||
| 1 | 98007130 | Safer Cooking Tips |
|
- | |||||
| 1 | 98007032 | Tech Sheet |
|
- | |||||
| 1 | 98015589 | Installation Instr (template) |
|
- | |||||
| 2 | 98017619T | Cooktop (biscuit) |
|
- | |||||
| 2 | WP98017619W | Cooktop (white) (Replaces: 98017619W) |
|
$ 326.72 | |||||
| 3 | W10134317 | Panel, Manifold (biscuit) |
|
- | |||||
| 3 | W10134313 | Panel, Manifold (white) |
|
- | |||||
| 4 | WP98008208 | Knob, Burner (4) (biscuit) (Replaces: 98008208) |
|
$ 19.70 | |||||
| 4 | WP98006102 | Knob, Burner (4) (white) (Replaces: 98006102) |
|
$ 18.41 | |||||
| 5 | WP98008321 | Knob, Thermostat (white) (Replaces: 98008321) |
|
$ 18.96 | |||||
| 5 | 98008322 | Knob, Thermostat (biscuit) |
|
- | |||||
| 6 | WPW10180089 | Grate, Burner (2) (Replaces: W10180089) |
|
$ 44.52 | |||||
| 7 | W11229684 | Clip, Cooktop (2) (Replaces: 98004722) |
|
$ 11.20 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 98014544) |
|
$ 78.23 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W11233072 | Screw (3) (Replaces: 98005000) |
|
Immediately | $ 13.25 | ||||
| 11 | WP98017461 | Cap, Burner (4) (Replaces: 98017461) |
|
$ 63.79 | |||||
| 12 | W10850756 | Screw (Replaces: 8534079) |
|
$ 7.38 | |||||
| 13 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 6.57 | |||||
| 14 | WP98017537 | Burner, Top (4) (Replaces: 98017537) |
|
$ 81.67 |
