01 - Cooktop, Literature

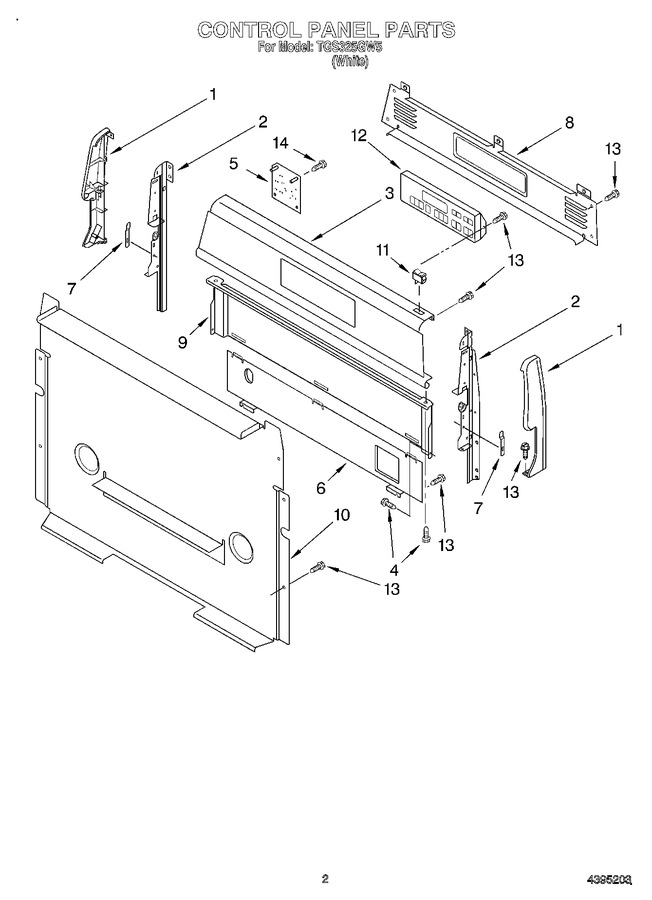

02 - Control Panel
03 - Manifold
04 - Chassis
05 - Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 3186188 | Endcap, Left Hand (black) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8272292 | Panel, Backguard |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 8054084) |
|
Immediately | $ 363.24 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 149.30 | |||||
| 7 | 3196200 | Clip, Spring (2) |
|
$ 9.41 | |||||
| 8 | 8272474 | Cover, Upper |
|
- | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8273132 | Cover, Lower |
|
- | |||||
| 11 | WP4314961 | Switch, Rocker (Replaces: 3148564) |
|
$ 84.56 | |||||
| 12 | 6610155 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 |
