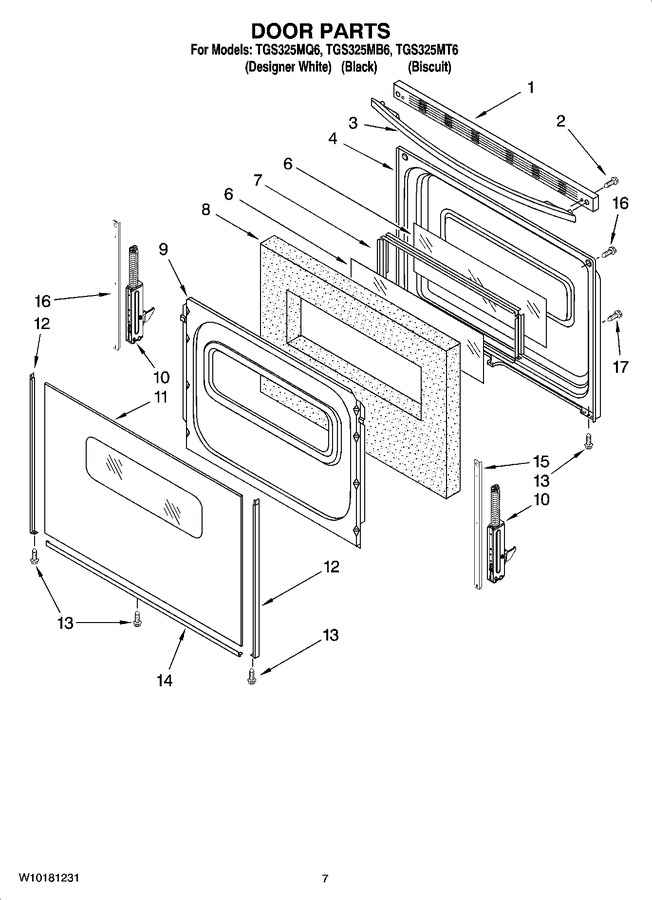

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Broiler Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016370 | Trim, Top (white) |
|
$ 79.85 | |||||
| 1 | W10016380 | Trim, Top (black) |
|
$ 80.76 | |||||
| 1 | W10016450 | Trim, Top (biscuit) |
|
$ 81.21 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 333.60 | |||||
| 3 | 8522445 | Handle, Door (biscuit) |
|
- | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 243.59 | |||||
| 4 | 9761340 | Liner, Door |
|
$ 325.01 | |||||
| 6 | WP9758164 | Glass, Inner (Replaces: 9758164) |
|
$ 143.94 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | 9761499 | Retainer, Insul. |
|
$ 292.80 | |||||
| 10 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 197.86 | ||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 8053481) |
|
$ 299.39 | |||||
| 11 | 8273525 | Glass, Outer Door (biscuit) |
|
- | |||||
| 11 | WP9762477 | Glass, Outer Door (black) (Replaces: 8053479) |
|
$ 297.11 | |||||
| 12 | W10761018 | Trim, Door Side (black, Lh) (Replaces: W10128571) |
|
Immediately | $ 49.32 | ||||
| 12 | WP8523167 | Trim, Door Side (biscuit, Rh) (Replaces: W10131044) |
|
$ 107.19 | |||||
| 12 | WP8523173 | Trim, Door Side (biscuit, Lh) (Replaces: W10128573) |
|
$ 111.18 | |||||
| 12 | W10761014 | Trim, Door Side (black, Rh) (Replaces: W10128562) |
|
Immediately | $ 65.66 | ||||
| 12 | WP8523172 | Trim, Door Side (white, Rh) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | WP8523166 | Trim, Door Side (white, Lh) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 14 | WP8523178 | Trim, Bottom (biscuit) (Replaces: 8523178) |
|
$ 145.59 | |||||
| 14 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | W11502236 | Strap, Door (2) (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 |
