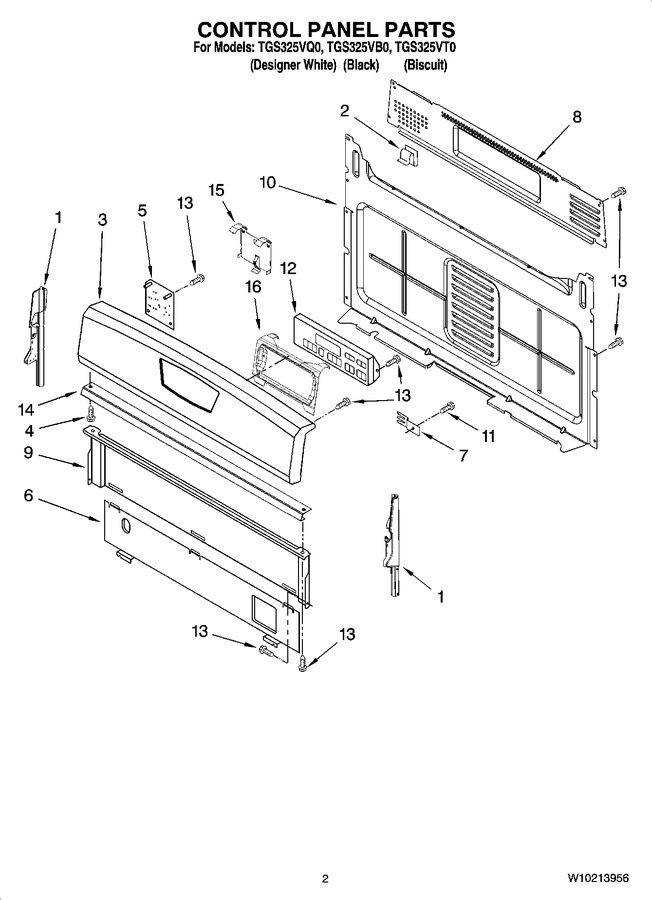

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)			Immediately	$ 138.45
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 54.75
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)			Immediately	$ 40.65
1	W11230612		Endcap (biscuit, Rh)   (Replaces: W10184436)		Appelez-nous	-
1	W11230611		Endcap (biscuit, Lh)   (Replaces: W10184435)		Appelez-nous	-
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 38.21
2	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
3	W10202184		Panel, Backguard (black)		Appelez-nous	-
3	W10202189		Panel, Backguard (white)		Appelez-nous	-
3	W10202183		Panel, Backguard (biscuit)		Appelez-nous	-
4	3196166		Screw (white)				$ 6.62
4	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 7.36
5	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 363.24
6	8053505		Shield, Lower Heat				$ 149.30
7	8523412		Bracket, Support				$ 151.11
8	W10198745		Cover, Upper				$ 116.01
9	W10192841		Shield, Heat				$ 96.02
10	W10184370		Cover, Lower		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
12	W10203145		Control, Range (black)		Appelez-nous	-
12	W10203146		Control, Range (white)		Appelez-nous	-
12	W10203147		Control, Range (biscuit)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	W10211996		Bracket, Console		Appelez-nous	-
15	W10516463		Bracket, Dsi   (Replaces: W10137524)		Appelez-nous	-
16	W11230932		Bracket, Eoc   (Replaces: W10138683)			Immediately	$ 76.33
