01 - Cooktop Parts


02 - Control Panel Parts

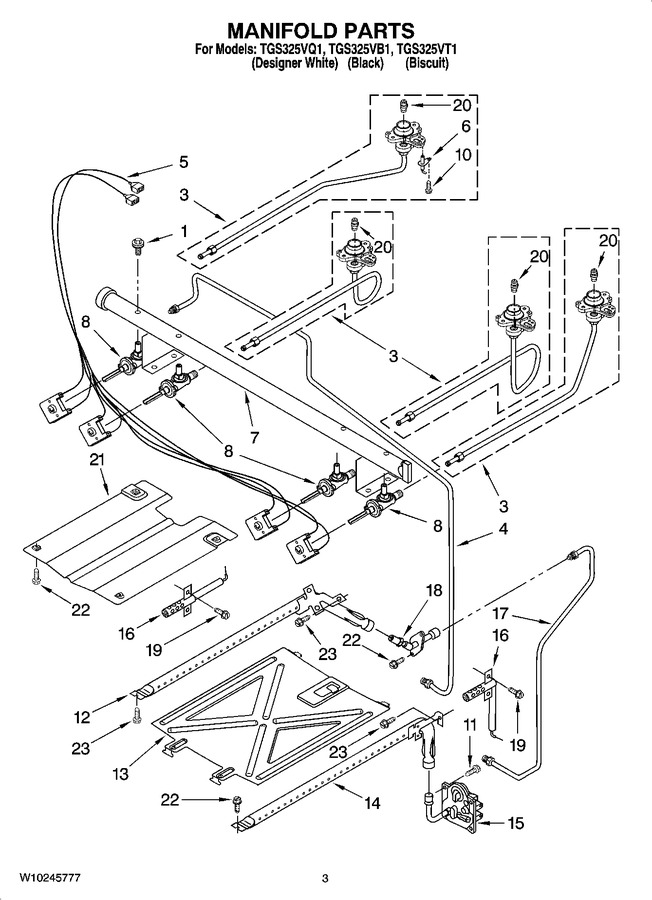

03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Broiler Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8273096		Screw, Valve				$ 5.27
3	W10170443		Tubing, Burner W/orifice (right Front)		Appelez-nous	-
3	W10170441		Tubing, Burner W/orifice (right Rear)		Appelez-nous	-
4	W10157928		Tubing (manifold To Regulator)				$ 94.01
5	WPW10295998		Harness, Igniter (w/switches)   (Replaces: 8523406)				$ 205.41
6	WPW10216419		Electrode (4)   (Replaces: W10216419)			Immediately	$ 33.05
7	W10176502		Pipe, Manifold		Appelez-nous	-
8	WP9757218		Valve (lf, Lr, Rf)   (Replaces: 9757218)				$ 242.24
8	8273004		Valve (rr)				$ 122.16
10	WP8273062		Screw (4)   (Replaces: 8273062)			Immediately	$ 7.12
11	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
12	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 215.42
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 228.17
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 203.46
15	WPW10293048		Valve, Regulator   (Replaces: 9761959)			Immediately	$ 418.31
16	WP8054129		Igniter (broil)   (Replaces: 8054129)			Immediately	$ 123.43
16	WP9758079		Igniter (bake)   (Replaces: 9758079)			Immediately	$ 43.26
17	8272222		Tubing (broiler Fitting To Valve)				$ 97.58
18	3186489		Fitting, Broiler				$ 64.58
19	W11684507		Screw   (Replaces: 3196385)				$ 12.84
20	WPW10170507		Orifice, Burner (left Rear)   (Replaces: W10170507)				$ 88.07
20	WPW10170506		Orifice, Burner (right Rear)   (Replaces: W10170506)				$ 88.07
20	WPW10170508		Orifice, Burner (lf & Rf)   (Replaces: W10170508)				$ 85.69
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
23	3196265		Screw		Appelez-nous	-
	W10170533		Spuds, Lp Gas (kit Of 4)		Appelez-nous	-
