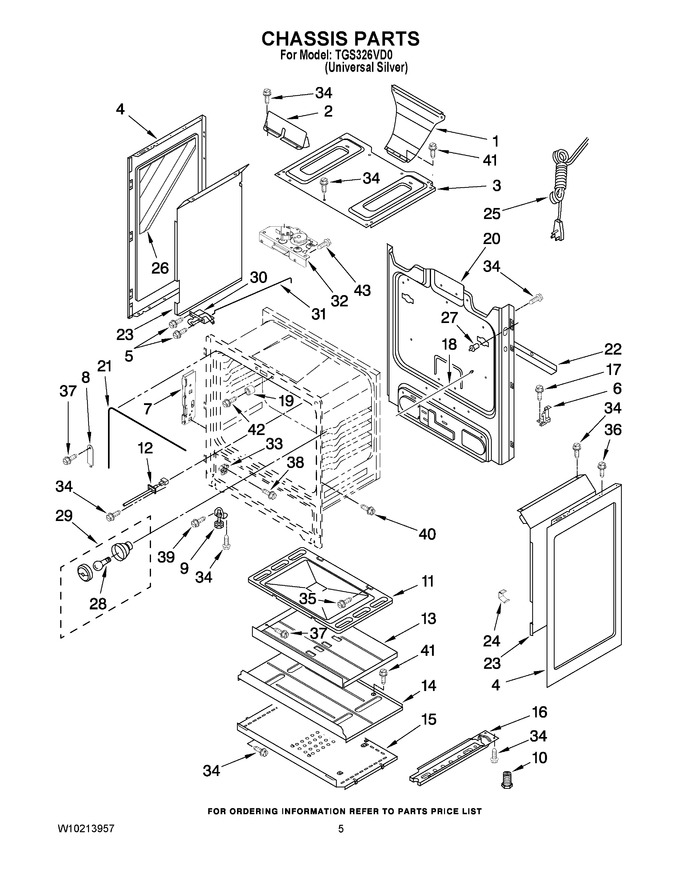

04 - Chassis Parts


05 - Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10153186)				$ 142.02
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 67.06
3	W11379351		Burner Box   (Replaces: 8273036)				$ 57.77
4	W11730303		Panel, Side (2) (black-textured)   (Replaces: 8053832)			Immediately	$ 160.65
5	W11169708		Screw (2)   (Replaces: 3196560)				$ 13.36
6	8523249		Brkt, Manifold Mtg		Appelez-nous	-
7	W10647259		Brkt - Hinge   (Replaces: 9760407)			Immediately	$ 8.39
8	9761517		Clip, Door Mntg (2)				$ 43.30
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 78.41
10	WPW10058460		Foot, Rear (2)   (Replaces: W10058460)			Immediately	$ 7.42
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 207.95
12	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
13	8053967		Baffle, Burner				$ 284.36
14	8053969		Shield, Heat				$ 101.74
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Rail, Base (2)   (Replaces: 9760314)				$ 56.39
17	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
18	9757239		Rod - Dr Switch				$ 86.73
19	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 50.45
20	W10222733		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 8522416)			Immediately	$ 45.18
22	8053971		Brace, Main Back				$ 7.82
23	9761448		Retainer, Insul. (right Hand)		Appelez-nous	-
23	9761449		Retainer, Insul. (left Hand)				$ 300.16
24	W10137382		Clip, Panel (4)			Immediately	$ 43.58
25	W11582239		Cord, Power   (Replaces: 9757891)				$ 15.83
26	W10182346		Insulation				$ 77.83
27	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 146.71
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
29	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
30	WP9761013		Latch, Door   (Replaces: 9761013)				$ 230.72
31	W10078370		Rod, Latch				$ 85.72
32	WPW10107820		Latch-mtr   (Replaces: W10107820)				$ 278.60
33	WPW10114344		Glide, Front (2)   (Replaces: W10114344)			Immediately	$ 7.71
34	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
35	3196152		Screw				$ 8.99
36	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.36
37	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
38	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
39	WP98008545		Screw   (Replaces: 3196179)				$ 16.74
40	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
41	WP7101P246-60		Screw   (Replaces: 3196177)				$ 7.42
42	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.36
43	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 111.28
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 110.46
NI	8053915		Insulation, Vent   (Replaces: 8272613)				$ 11.75
