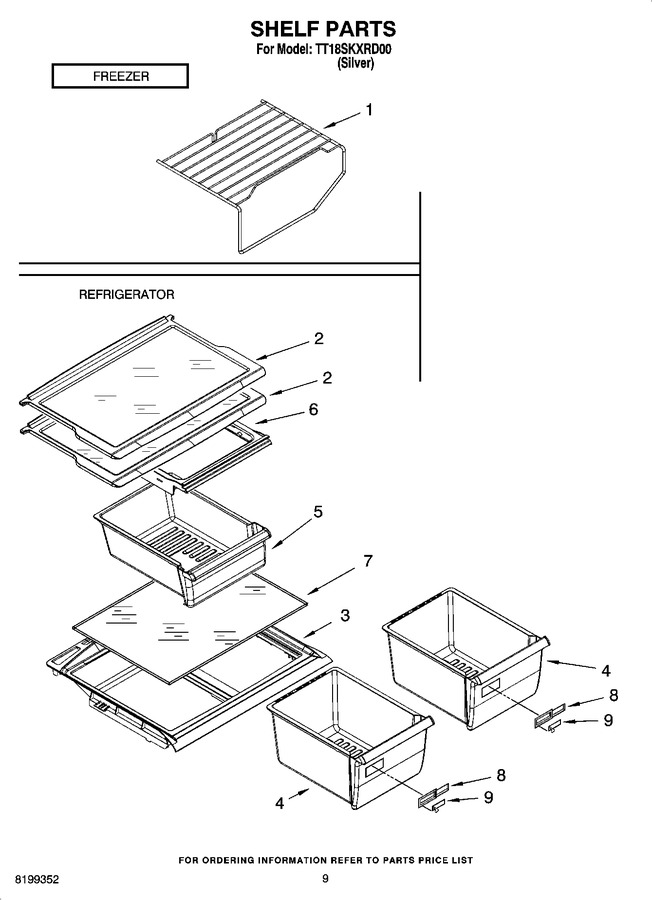

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10401596 | Shelf, Ice Tray (Replaces: 2262654) |
|
$ 77.75 | |||||
| 2 | W10837901 | Shelf (Replaces: 2263641) |
|
$ 239.66 | |||||
| 3 | WP2192250 | Crisper Cover (Replaces: 2192250) |
|
Immediately | $ 173.91 | ||||
| 4 | W10804447 | Crisper Pan (includes 8 & 9) (Replaces: 2252932) |
|
Immediately | $ 156.75 | ||||
| 5 | 2207936 | Pan, Meat |
|
- | |||||
| 6 | 2262686 | Holder, Meat Pan |
|
- | |||||
| 7 | WP2210047 | Glass, Cover (Replaces: 2210047) |
|
Immediately | $ 195.59 | ||||
| 8 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 14.23 | |||||
| 9 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 84.73 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.62 | ||||||
| 1129316 | Eckmf90 |
|
Immediately | $ 134.20 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 218.83 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | |||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 218.83 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 |
