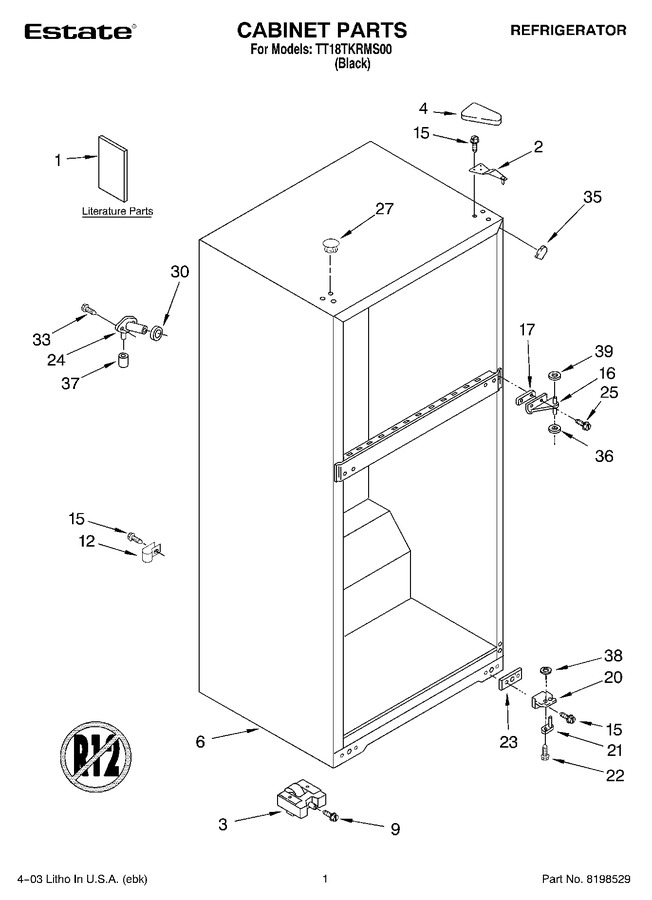

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2258785		Literature Parts (energy Label)		Appelez-nous	-
1	LIT2217549		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2258855		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT677969		Literature Parts (do-it-yourself Manual Ref./frz.)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 107.48
3	2217757		Roller-front		Appelez-nous	-
4	WP2213363		Cover, Hinge   (Replaces: 2213363)			Immediately	$ 17.21
6	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	2222100		Screw				$ 94.32
12	549193		Clamp-cord				$ 12.65
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 76.57
17	2215385		Shim, Hinge Center				$ 82.21
20	WP2325482		Hinge Butt   (Replaces: 2221926)			Immediately	$ 72.00
21	9791682		Hinge-pin Bott.				$ 26.60
22	WP3428970		Screw   (Replaces: 3428970)				$ 10.38
23	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
24	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.33
25	489498		Screw		Appelez-nous	-
27	WP2183998		Hole Plug (6)   (Replaces: 2183998)				$ 17.11
30	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
33	WPW10141645		Screw, 8 X 1/2 A   (Replaces: 489084)				$ 7.25
35	W11500943		Corner Filler   (Replaces: 2215384)				$ 7.18
36	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
37	WP487996		Cap Bushing   (Replaces: 487996)				$ 7.80
38	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
39	WP488296		Washer   (Replaces: 488296)			Immediately	$ 6.80

    View Diagram in Separate Window       Print Part List
