SELECT A DIAGRAM

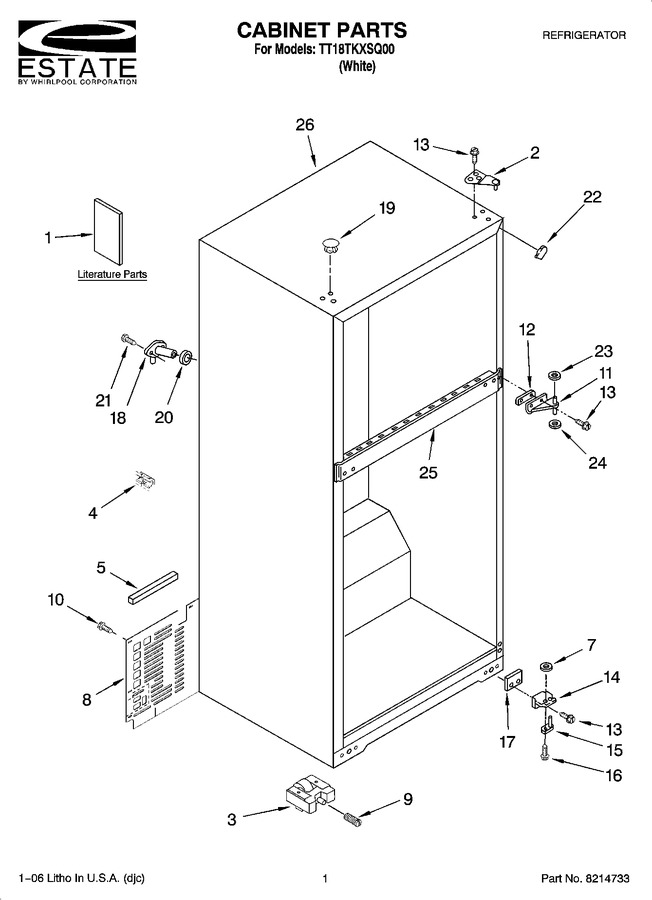

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	2265591		Service & Wiring Sheet		Appelez-nous	-
1	2316077		Use & Care Guide		Appelez-nous	-
1	2316232		Energy Guide		Appelez-nous	-
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 107.48
3	2217757		Roller-front		Appelez-nous	-
4	2266506		Spacer, Back				$ 12.95
5	2264535		Foam Block		Appelez-nous	-
7	WP488296		Washer   (Replaces: 488296)			Immediately	$ 6.80
8	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 102.39
9	2222100		Screw				$ 94.32
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
11	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 76.57
12	2166043		Shim, Hinge Center				$ 62.78
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
14	WP2325482		Hinge Butt, Bottom   (Replaces: 2221926)			Immediately	$ 72.00
15	9791682		Hinge-pin, Bottom				$ 26.60
16	WP3428970		Screw   (Replaces: 3428970)				$ 10.38
17	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
18	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.33
19	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 20.58
20	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
21	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
22	W10859322		Corner Filler   (Replaces: 2166003)				$ 7.28
23	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12

    View Diagram in Separate Window       Print Part List
