SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

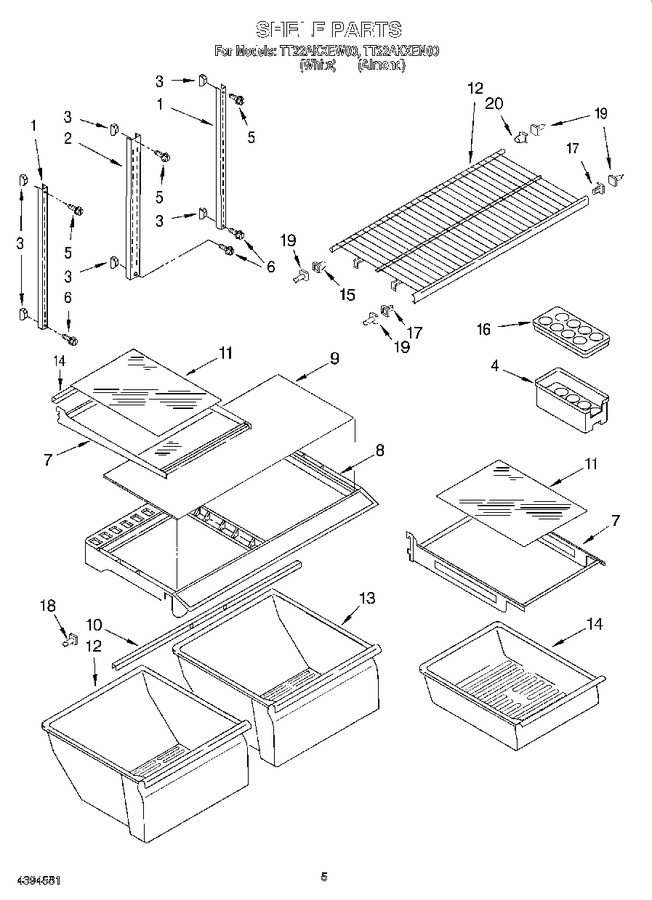

04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 28.22
4	1107384		Egg Container, Bottom		Appelez-nous	-
5	489345		Screw,		Appelez-nous	-
6	WP489474		Screw, 8 X 1-1/4   (Replaces: 489474)			Immediately	$ 7.70
7	2173421		Shelf, Cantilever (3)		Appelez-nous	-
8	2174134		Crisper Cover		Appelez-nous	-
9	2173438		Glass, Crisper Cover		Appelez-nous	-
10	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 91.87
11	2173420		Shelf, Glass		Appelez-nous	-
12	1125540		Shelf, Freezer		Appelez-nous	-
13	2179331		Pan, Crisper		Appelez-nous	-
14	2179337		Pan, Meat		Appelez-nous	-
15	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 37.49
16	1107388		Egg Container, Top		Appelez-nous	-
17	946356		Shelf Stud		Appelez-nous	-
18	1106612		Shelf Stud (2)				$ 7.56
19	946355		Support, Stud		Appelez-nous	-
20	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 37.49

    View Diagram in Separate Window       Print Part List
