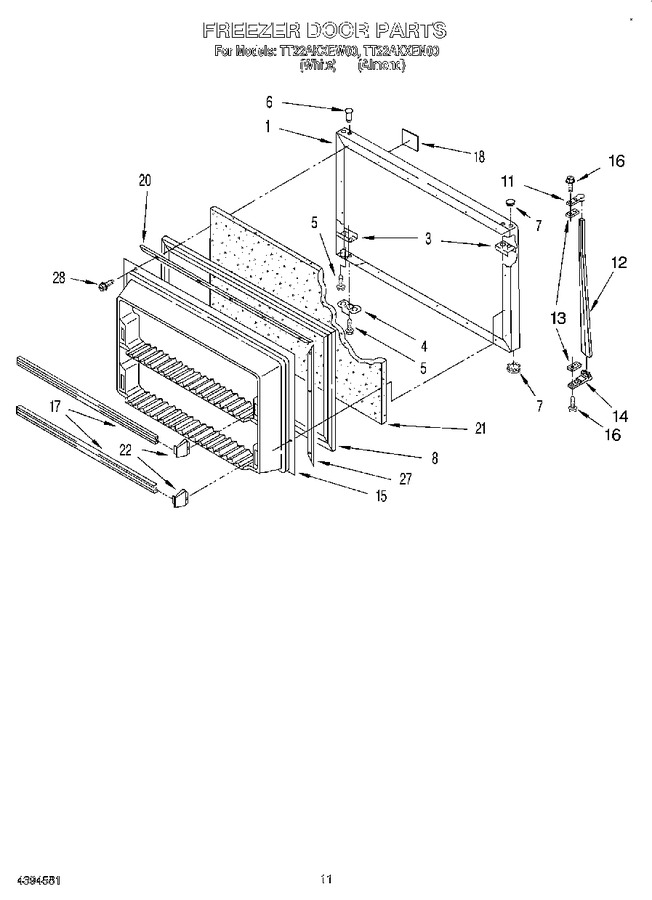

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159163		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	2159160		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
3	2183198		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188460A		Door Gasket Magnetic (white Model)   (Replaces: 2148567)				$ 208.36
8	2188460A		Door Gasket Magnetic (almond Model)   (Replaces: 1122831)				$ 208.36
11	819342		End Cap, Handle (white)   (Replaces: 9791771)			Immediately	$ 46.18
11	819342		End Cap, Handle (almond)   (Replaces: 9791772)			Immediately	$ 46.18
12	2159623		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2159624)			Immediately	$ 141.86
13	943187		Shim, Handle				$ 25.14
14	819342		Handle End (almond)   (Replaces: 9791777)			Immediately	$ 46.18
14	819342		Handle End (white)   (Replaces: 9791776)			Immediately	$ 46.18
15	1122575		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.18
17	2171403		Trim, Door Shelf (2)		Appelez-nous	-
18	2200749		Nameplate (white Model)   (Replaces: 2183233)		Appelez-nous	-
18	2183234		Nameplate (almond Model)		Appelez-nous	-
20	1122552		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 17.01
23	943188		Spacer				$ 7.80
27	1122553		Retainer, Gasket		Appelez-nous	-
28	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
28	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
28	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
28	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
28	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
28	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
28	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
28	833938		Kit, Terminal Connector				$ 7.62
28	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
28	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
28	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
28	WP489442		Screw (20)   (Replaces: 489442)			Immediately	$ 10.34
28	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
28	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
28	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
28	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
28	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
28	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
28	2172761		Door Reversal Instructions		Appelez-nous	-
28	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2177039		Service & Wiring Sheet		Appelez-nous	-
	LIT2182590		Care & Use Guide		Appelez-nous	-
	LIT2175316		Energy Guide		Appelez-nous	-
