01 - Frame And Console


02 - Inner Door


03 - Tub Assembly, Lit/optional


04 - Pump And Spray Arm


05 - Pump And Motor, Miscellaneous


06 - Dishrack

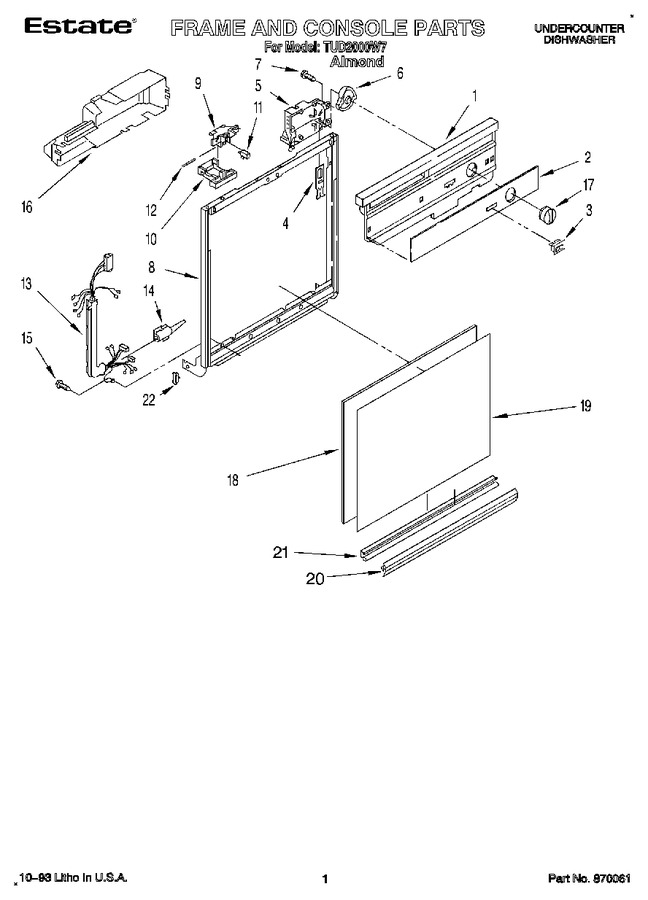

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3370378		Console (includes Item 2)		Appelez-nous	-
2	3370256		Insert, Console		Appelez-nous	-
3	WP4314961		Switch, Rocker   (Replaces: 3370296)				$ 84.56
4	3368997		Follower, Cam				$ 35.20
5	3369310		Timer		Appelez-nous	-
6	3368996		Cam		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 7.33
8	3374018		Door Frame (includes Item 21)		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 91.56
10	WP3368954		Lever, Latch   (Replaces: 3368954)				$ 7.83
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3372247		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 6.37
16	3373367		Cover Timer		Appelez-nous	-
17	3370254		Knob, Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	3369851		Front Panel (almond)		Appelez-nous	-
20	3374010		Retainer, Panel				$ 40.68
21	3374015		Channel, Retainer (also Order Item No.20)		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 9.91
