01 - Cabinet Parts
02 - Door Parts

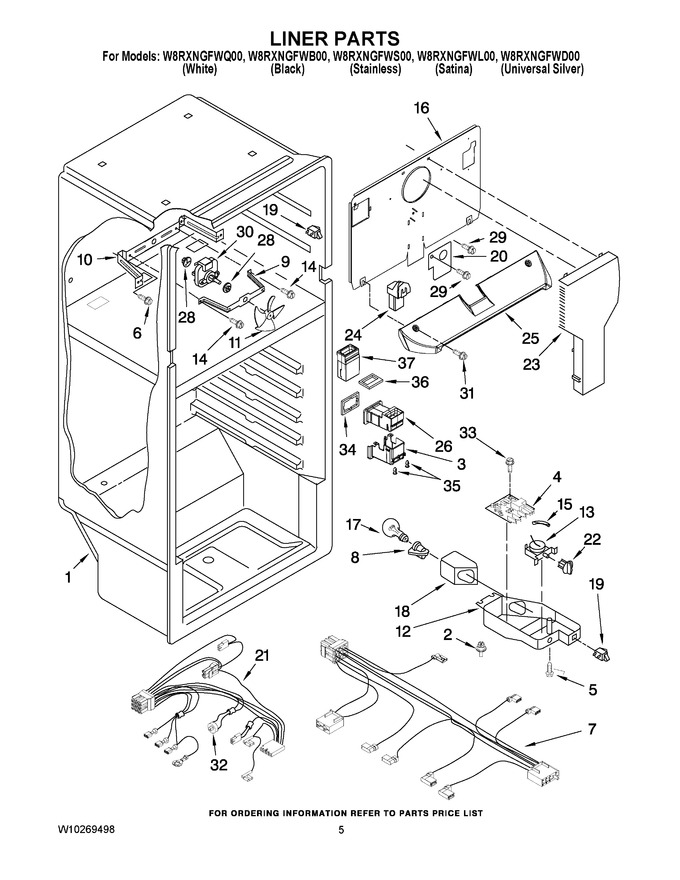

03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet |
|
$ 11.18 | |||||
| 3 | 2252837 | Cover, Air Diffuser |
|
$ 198.56 | |||||
| 4 | 4388931 | Adaptive Defrost Control (Replaces: 2303825) |
|
Immediately | $ 296.69 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.57 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 7 | 2265930 | Wire Assembly Control Box |
|
$ 125.65 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: W10180172) |
|
$ 38.05 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 12 | 2263083 | Control Box |
|
$ 123.55 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2325701) |
|
Immediately | $ 162.37 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.57 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 7.52 | |||||
| 16 | 2264669 | Cover-evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2262009) |
|
Immediately | $ 10.17 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 98.03 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | WP2217784 | Cover, Hole (Replaces: 2217784) |
|
$ 42.50 | |||||
| 21 | W10290502 | Wiring, Freezer (includes Item 32) (Replaces: W10164671) |
|
- | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 24.93 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2261978 | Cover, Air Return |
|
$ 135.09 | |||||
| 26 | 2252834 | Air Diffuser |
|
- | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2264462) |
|
Immediately | $ 41.55 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 30 | WPW10189703 | Evaporator Fan Motor (Replaces: 2319208) |
|
Immediately | $ 68.73 | ||||
| 31 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 7.70 | ||||
| 32 | WPW10225581 | Defrost, Bi-metal (Replaces: 2266067) |
|
Immediately | $ 45.69 | ||||
| 33 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.16 | |||||
| 34 | W10129686 | Gasket, Body Air Diffuser |
|
$ 12.31 | |||||
| 35 | 2256983 | Rivet |
|
$ 38.78 | |||||
| 36 | 2263075 | Gasket, Air Duct |
|
$ 90.15 | |||||
| 37 | 2252831 | Air Duct Assembly |
|
$ 96.42 |
