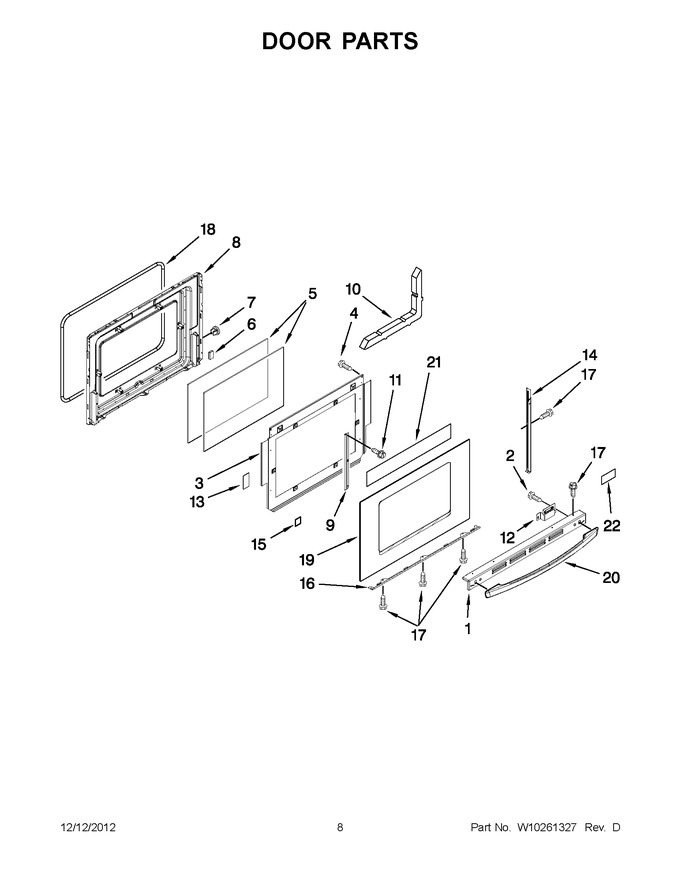

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-61 | Trim, Door Top |
|
- | |||||
| 2 | 7101P208-60 | Screw |
|
$ 11.92 | |||||
| 3 | 3601F373-51 | Baffle, Oven Door Window |
|
$ 256.44 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.81 | |||||
| 5 | 74003645 | Glass, Inner (Replaces: 7902P436-60) |
|
Immediately | $ 211.29 | ||||
| 6 | WP74005546 | Rubber Spacer (Replaces: 8010P130-60) |
|
$ 9.95 | |||||
| 7 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 10.57 | ||||
| 8 | 2402W313-19 | Lining, Door |
|
- | |||||
| 9 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Oven Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 12 | 3801F831-45 | Bracket, Handle (right) |
|
$ 20.13 | |||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 20.07 | |||||
| 13 | W10250536 | Tape, White |
|
- | |||||
| 14 | WP3608F116-71 | Trim, Door Side (right) (Replaces: 3608F116-71) |
|
$ 117.61 | |||||
| 14 | WP3608F117-71 | Trim, Door Side (left) (Replaces: 3608F117-71) |
|
$ 117.00 | |||||
| 15 | 8010P152-60 | Spacer, Rubber (1/8 X 1/2 X 1/2) |
|
- | |||||
| 16 | WP3807F708-71 | Trim, Door Bottom (Replaces: 3807F708-71) |
|
$ 152.07 | |||||
| 17 | WP98008544 | Screw (Replaces: 7101P636-60) |
|
$ 12.48 | |||||
| 18 | WP7212P043-60 | Seal, Oven Door (Replaces: 7212P043-60) |
|
Immediately | $ 65.43 | ||||
| 19 | 7902P814-60 | Glass, Door |
|
- | |||||
| 20 | WPW10118430 | Handle, Door (Replaces: W10118430) |
|
$ 251.36 | |||||
| 21 | W10250534 | Tape, Foil |
|
- | |||||
| 22 | 8303811 | Badge |
|
$ 29.09 |
