01 - Cabinet Parts

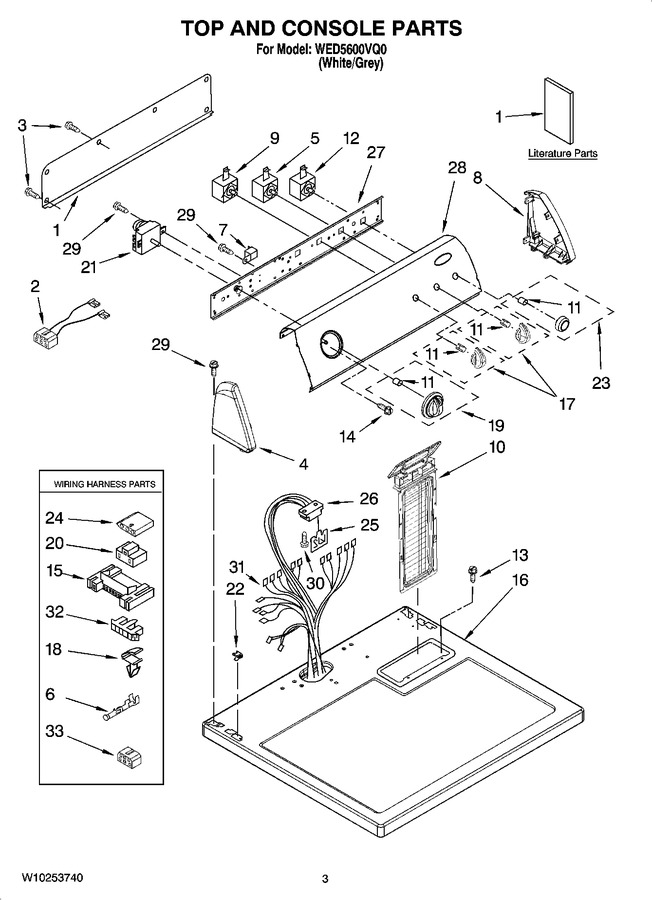

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 2 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP3405156 | Switch, Rotary (Replaces: 3405156) |
|
$ 137.51 | |||||
| 6 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.25 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | WP8578352 | Switch, Temperature (Replaces: 8578352) |
|
$ 214.07 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 87.77 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 12.49 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | 8565944 | Knob, Control (2) |
|
$ 25.10 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 19 | 8566061 | Timer Knob Assembly |
|
$ 26.93 | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 11.53 | |||||
| 21 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 276.24 | ||||
| 22 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.98 | |||||
| 23 | WP8566073 | Knob, Push-to-start (Replaces: 8566073) |
|
$ 52.20 | |||||
| 24 | 3936144 | Connector |
|
$ 19.10 | |||||
| 25 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 296.94 | ||||
| 26 | 3391885 | Connector, Edge |
|
$ 81.65 | |||||
| 27 | 8544895 | Bracket, Control |
|
- | |||||
| 28 | W10206013 | Panel, Control |
|
- | |||||
| 29 | WP90767 | Screw, Mounting (8-18 X 5/16) (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 30 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 31 | W10071280 | Harness, Wiring (Replaces: 8576544) |
|
- | |||||
| 32 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- |
