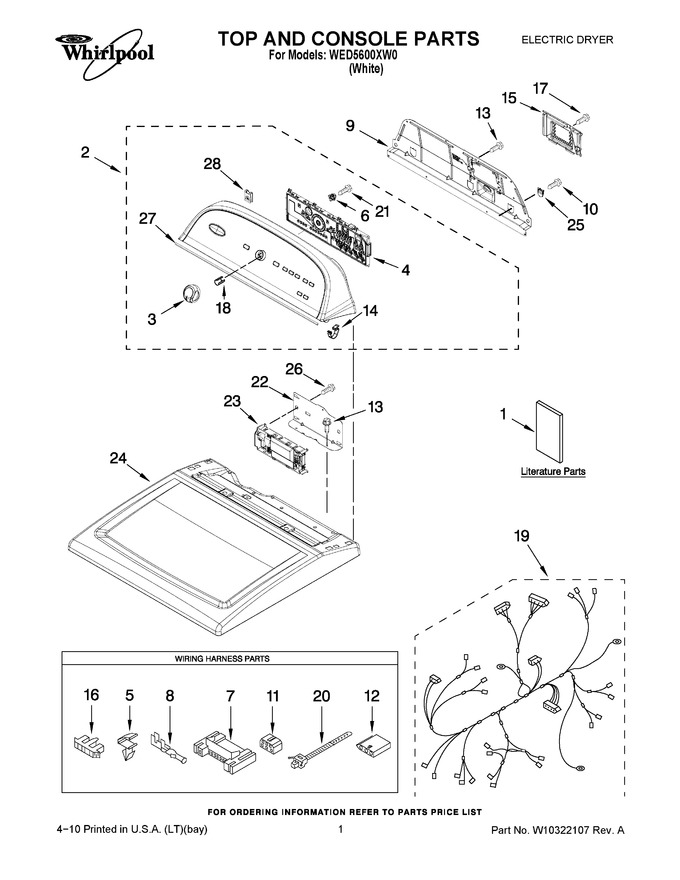

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096966		Tech Sheet		Appelez-nous	-
1	W10096988		Installation Instructions		Appelez-nous	-
1	W10096985		Guide, Use & Care		Appelez-nous	-
2	WPW10269610		Console Assembly (complete)   (Replaces: W10269610)				$ 377.12
3	WPW10251392		Knob Assembly   (Replaces: W10251392)				$ 53.60
4	W10269625		User Interface Assembly				$ 262.26
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
6	W10274524		Tensioner Fascia		Appelez-nous	-
7	3395683		Connector (motor)			Immediately	$ 49.01
8	WP94614		Terminal   (Replaces: 94614)				$ 7.25
9	W10096969		Panel, Rear				$ 178.02
10	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
11	3347243		Connector 6-circuit		Appelez-nous	-
12	3936144		Connector				$ 19.10
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
16	3397269		Connector, Timer				$ 25.55
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.43
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
19	W10253981		Harness, Electric		Appelez-nous	-
20	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 30.09
21	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 7.36
22	W10271580		Bracket, Motor Control		Appelez-nous	-
23	WPW10317636		Ccu-control   (Replaces: W10259285)			Immediately	$ 341.87
24	W11641121		Top   (Replaces: W10260246)			Immediately	$ 193.59
25	W10279552		Plug-upper Rear Panel (3)		Appelez-nous	-
26	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 75.34
27	W10280079		Seal, Console		Appelez-nous	-
28	W11213336		8-18 U-type Nut   (Replaces: W10298336)				$ 7.32
