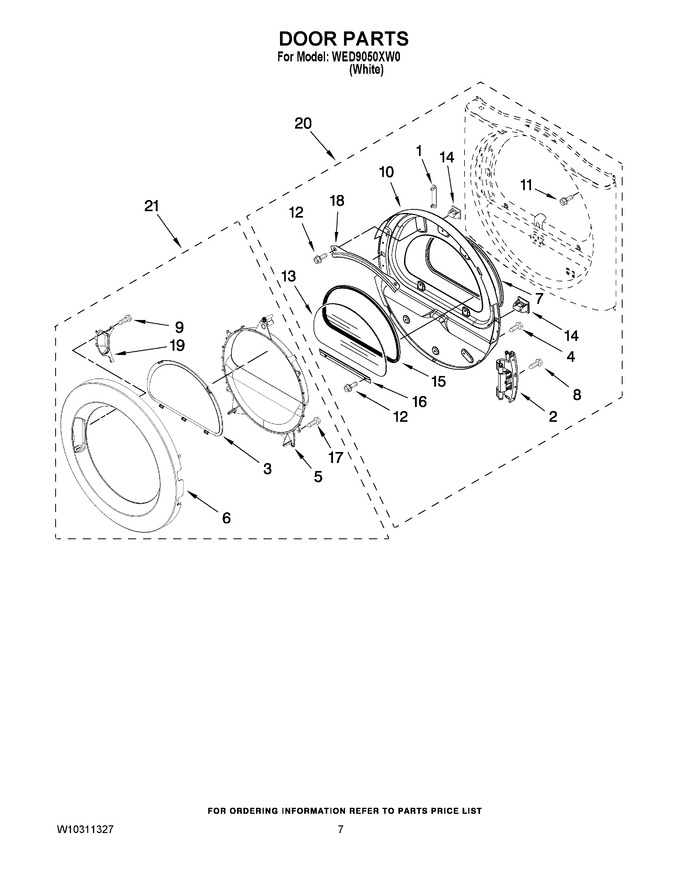

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10256915 | Label, Hinge Hole Cover (inner Door) (Replaces: W10256915) |
|
$ 73.86 | |||||
| 2 | WPW10304672 | Door Hinge Assembly (Replaces: W10304672) |
|
Immediately | $ 209.23 | ||||
| 3 | W10215741 | Screen, Door |
|
- | |||||
| 4 | W11116979 | Screw,8-18 X 1/2 (Replaces: 8534044) |
|
$ 12.38 | |||||
| 5 | W10283424 | Door, Intermediate Stationary |
|
- | |||||
| 6 | W10215742 | Door, Outer Ring |
|
$ 318.57 | |||||
| 7 | WPW10163915 | Door Seal (Replaces: W10163915) |
|
Immediately | $ 119.44 | ||||
| 8 | WPW10159996 | Screw (Replaces: W10159996) |
|
$ 7.67 | |||||
| 9 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 10 | WPW10164062 | Door Assembly Inner (includes Item. 1 & 14) (Replaces: W10259900) |
|
$ 318.66 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 7.63 | |||||
| 12 | WP3373329 | Screw, 10-16 X 1/2 (Replaces: 3393258) |
|
$ 7.67 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 247.28 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 15 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 25.40 | |||||
| 16 | W10822054 | Retainer (lower) (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 17 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 18 | 8519356 | Retainer (upper) |
|
- | |||||
| 19 | W10215754 | Handle, Door |
|
$ 77.36 | |||||
| 20 | W10270216 | Door, Inner Assembly |
|
$ 141.94 | |||||
| 21 | W10215753 | Door, Outer Assembly |
|
$ 257.27 |
