SELECT A DIAGRAM

01 - Top And Cabinet Parts

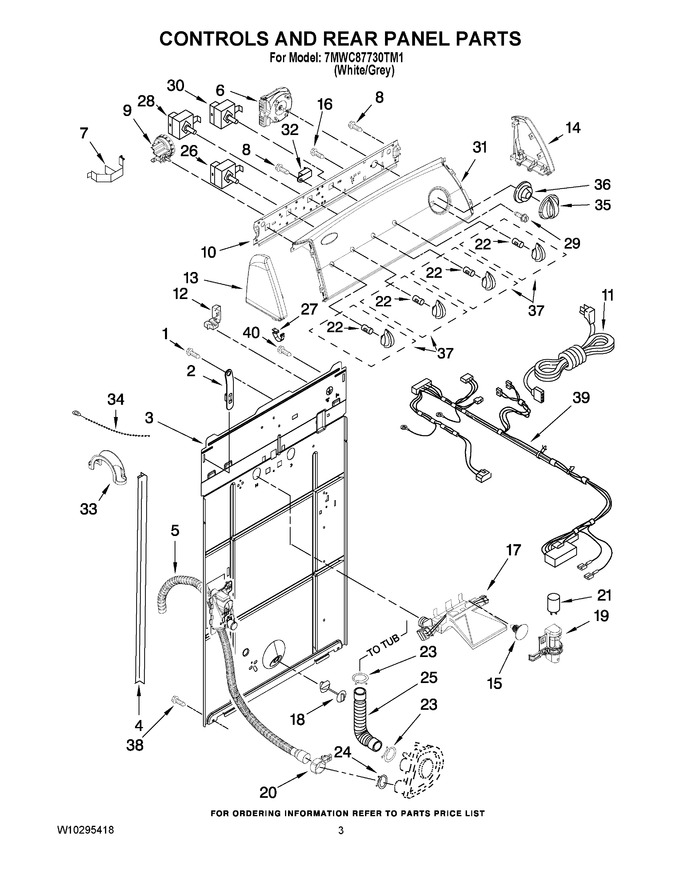

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.72
2	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.35
3	WPW10194450		Panel, Rear   (Replaces: W10194450)				$ 318.11
4	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
5	WPW10189267		Hose, Drain Assembly (includes Item 27)   (Replaces: W10189267)				$ 63.52
6	WP8577356		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8577356)			Immediately	$ 199.99
7	8055003		Clip, Harness & Pressure Hose				$ 36.24
8	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
9	W10339250		Switch, Water Level   (Replaces: 8577842)				$ 200.15
10	8566003		Bracket, Control				$ 64.58
11	W10115689		Cord, Power (includes Item 12)		Appelez-nous	-
12	3952821		Strain Relief, Power Cord		Appelez-nous	-
13	WP8565957		Cap, End (l.h.) (includes Item 27)   (Replaces: 8566035)				$ 58.28
14	WP8565954		Cap, End (r.h.) (includes Item 27)   (Replaces: 8566032)				$ 59.26
15	W10000080		Retainer, Push-in		Appelez-nous	-
16	3400073		Screw, Ground		Appelez-nous	-
17	WPW10278652		Valve, Water Inlet W/vacuum Break   (Replaces: W10278652)				$ 216.14
18	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.87
19	8318046		Clip, Capacitor				$ 79.31
20	8541668		Clamp, Leg				$ 20.09
21	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 87.84
22	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
23	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
24	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
25	285871		Hose, Pump To Tub (includes Item 23)   (Replaces: 3951449)			Immediately	$ 26.09
26	661614		Switch, Water Temperature				$ 56.07
27	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
28	WPW10168257		Switch, Rotary Twist Mount   (Replaces: 3949180)				$ 126.00
29	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.93
30	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 122.63
31	W10222526		Panel, Console		Appelez-nous	-
32	WP694419		Mini Buzzer   (Replaces: 694419)				$ 120.65
33	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
34	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.47
35	WP8566022		Knob, Timer   (Replaces: 8566022)				$ 59.92
36	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 48.23
37	8565944		Knob, Control				$ 25.10
38	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
39	W10224861		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
40	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.57

    View Diagram in Separate Window       Print Part List
