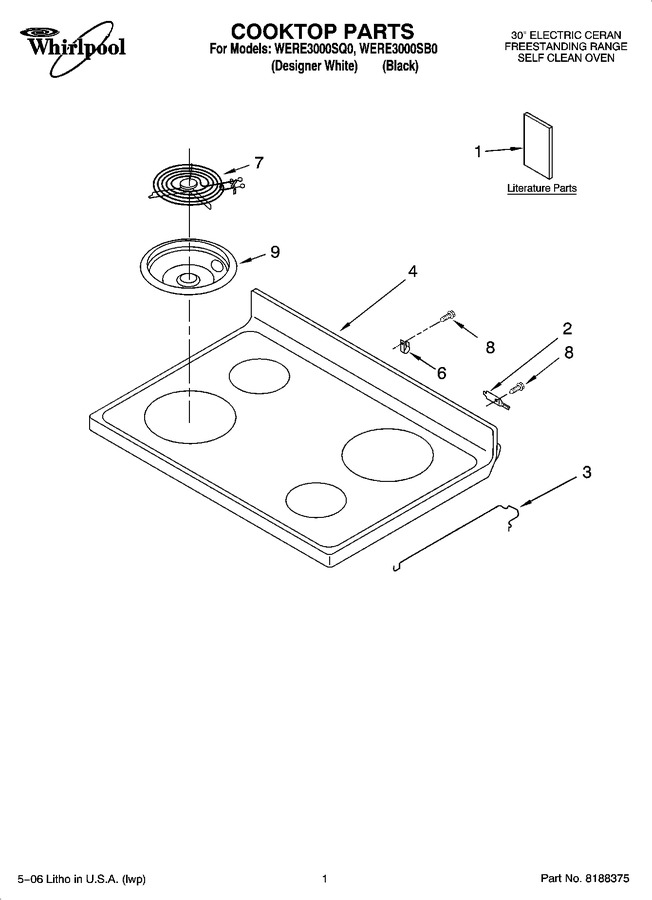

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762182 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9763040 | Owners Manual |
|
- | |||||
| 1 | 9762987 | Tech Sheet (english) |
|
- | |||||
| 1 | W10041650 | Tech Sheet (french) |
|
- | |||||
| 2 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 3 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 7.86 | ||||
| 4 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 377.38 | |||||
| 4 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 458.94 | |||||
| 6 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 7 | WP660532 | Element, Surface (6`` 4 Turn) (Replaces: 9761347) |
|
Immediately | $ 45.10 | ||||
| 7 | WPW10259865 | Element, Surface (8`` 5 Turn) (Replaces: 9761345) |
|
Immediately | $ 136.27 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 9 | WPW10196406 | Drip Bowl (6`` (2)) (Replaces: 3195208) |
|
Immediately | $ 12.42 | ||||
| 9 | W10196405RW | Drip Bowl (8`` (2)) (Replaces: 3195209) |
|
Immediately | $ 19.64 |
