01 - Cooktop Parts

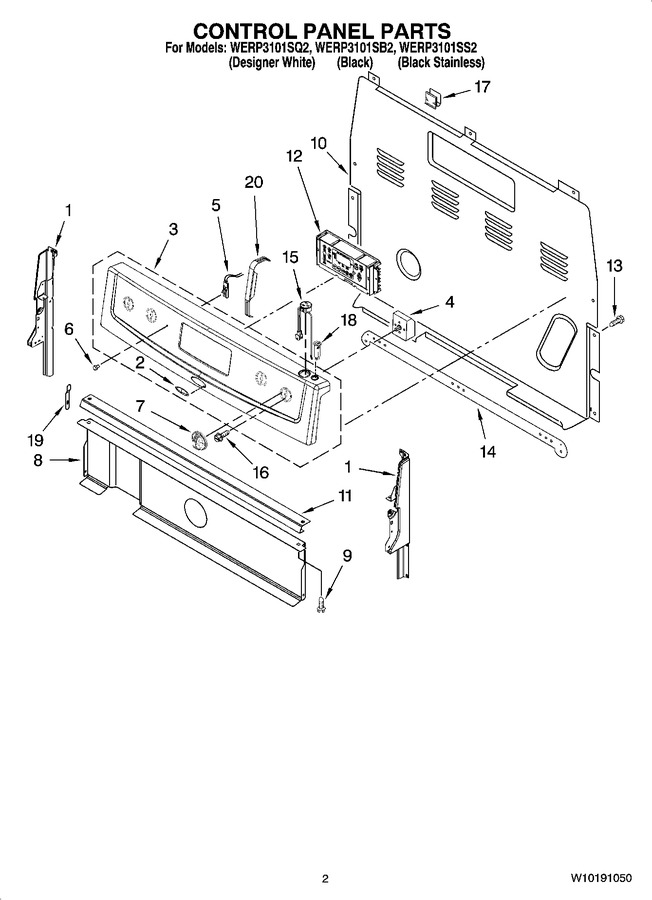

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left) (Replaces: W10009080) |
|
$ 138.45 | |||||
| 1 | W11219370 | Endcap (white Right) (Replaces: W10009050) |
|
$ 54.75 | |||||
| 1 | W11219365 | Endcap (white Left) (Replaces: W10009040) |
|
$ 38.21 | |||||
| 1 | W11219665 | Endcap (black Right) (Replaces: W10009090) |
|
$ 40.65 | |||||
| 2 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 3 | W10005860 | Panel, Control (black) |
|
- | |||||
| 3 | W10005850 | Panel, Control (white) |
|
- | |||||
| 3 | W10007130 | Panel, Control (silver) |
|
- | |||||
| 4 | WP3149400 | Switch, Infinite (lf - Rr) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4 | WP3148952 | Switch, Infinite (lr & Rf) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 20.07 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 8 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 9 | 3196166 | Screw |
|
$ 6.62 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | 9762095 | Brkt-mntg, Console |
|
- | |||||
| 12 | W10840298 | Control, Range (black) (Replaces: W10108100) |
|
$ 408.48 | |||||
| 12 | W10840298 | Control, Range (white) (Replaces: W10108090) |
|
$ 408.48 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 9780585 | Wire Guard |
|
$ 35.21 | |||||
| 15 | W10861164 | Receptacle (stainless Steel) (Replaces: 9758888) |
|
Immediately | $ 16.62 | ||||
| 15 | 9758886 | Receptacle (black) |
|
$ 8.00 | |||||
| 15 | W10849725 | Receptacle (white) (Replaces: 9758885) |
|
Immediately | $ 100.00 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 18 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 18 | WP9757604 | Breaker, 15 Amp (stainless Steel) (Replaces: 9757604) |
|
Immediately | $ 9.85 | ||||
| 18 | WP9757602 | Breaker, 15amp (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 19 | 3196200 | Clip, Spring (2) |
|
$ 9.41 | |||||
| 20 | 9762078 | Bracket, Mounting Eoc (2) |
|
$ 38.13 |
