View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Drawer & Broiler Parts
03 - Chassis Parts
04 - Control Panel Parts

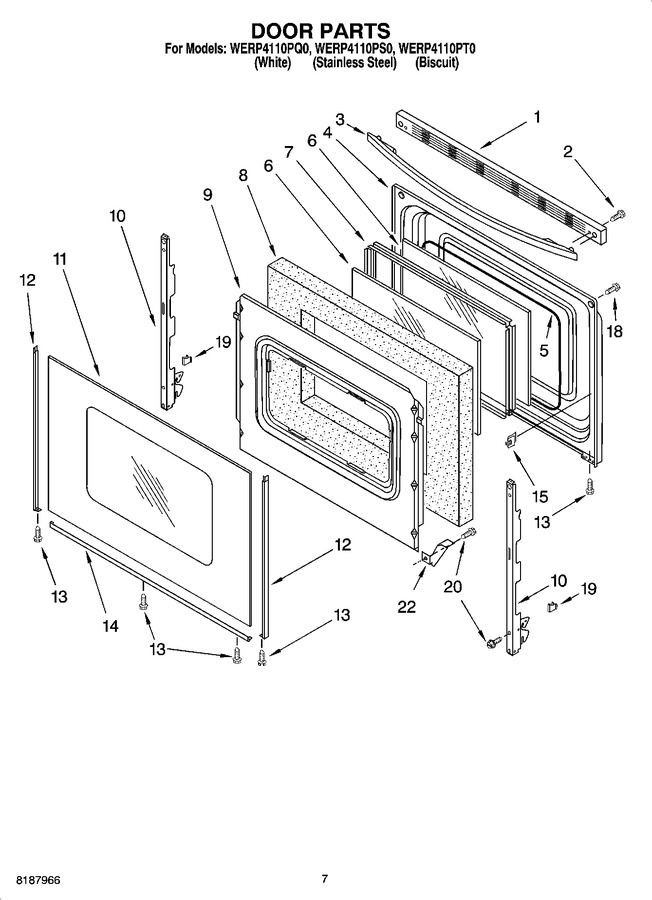

05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8522434 | Trim, Top (biscuit) |
|
- | |||||
| 1 | 8272243 | Trim, Top (stainless Steel) |
|
- | |||||
| 1 | 8522433 | Trim, Top (white) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | 8522445 | Handle, Door (biscuit) |
|
- | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 243.59 | |||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 333.60 | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 209.98 | |||||
| 10 | WP8053807 | Hinge, Door (2) (white And Biscuit Models) (Replaces: 8053807) |
|
$ 91.05 | |||||
| 10 | 8272822 | Hinge, Door (2) (stainless Model) |
|
$ 71.88 | |||||
| 11 | 9756435 | Glass, Outer (black) |
|
- | |||||
| 11 | WPW10118454 | Glass, Outer (white) (Replaces: 9756415) |
|
$ 292.42 | |||||
| 11 | 9756416 | Glass, Outer (biscuit) |
|
- | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | WP8523173 | Trim, Side (biscuit Right Hand) (Replaces: 8523173) |
|
$ 111.18 | |||||
| 12 | WP8523167 | Trim, Side (biscuit Left Hand) (Replaces: 8523167) |
|
$ 107.19 | |||||
| 12 | WP8523166 | Trim, Side (white Left Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 12 | WP8523172 | Trim, Side (white Right Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8523180 | Trim, Lower (black) (Replaces: 8523180) |
|
$ 152.10 | |||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 14 | WP8523178 | Trim, Lower (biscuit) (Replaces: 8523178) |
|
$ 145.59 | |||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.58 | ||||
| 19 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 22 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 3400964 | Clip, Wire Ground |
|
$ 80.10 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 78.50 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 8273888A | Anti-tip Kit (Replaces: 3176830) |
|
$ 29.36 | ||||||
| 9759777 | Harness, Wire (cooktop Left) |
|
- | ||||||
| 9759776 | Harness, Wire (cooktop Right) |
|
- | ||||||
| 9759582 | Harness, Wire (main) |
|
- | ||||||
| 9757584 | Harness, Wire (sensor) |
|
- | ||||||
| 9756350 | Power, Cord |
|
$ 60.82 | ||||||
| 9756779 | Strain Relief |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 9757288 | 11 Pin Cable |
|
- | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 78.23 | ||||||
| W11244557 | Screw, Ground (Replaces: 3196173) |
|
$ 12.86 | ||||||
| WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | ||||||
| 8523718 | Harness, Wire (door Switch) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 8316781 | Wire, Black 14 Ga. 150 C |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 814381 | Pin Kit-dr Removal (Replaces: 3196897) |
|
$ 10.15 | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- |
