01 - Cooktop Parts
02 - Drawer & Broiler Parts
03 - Chassis Parts

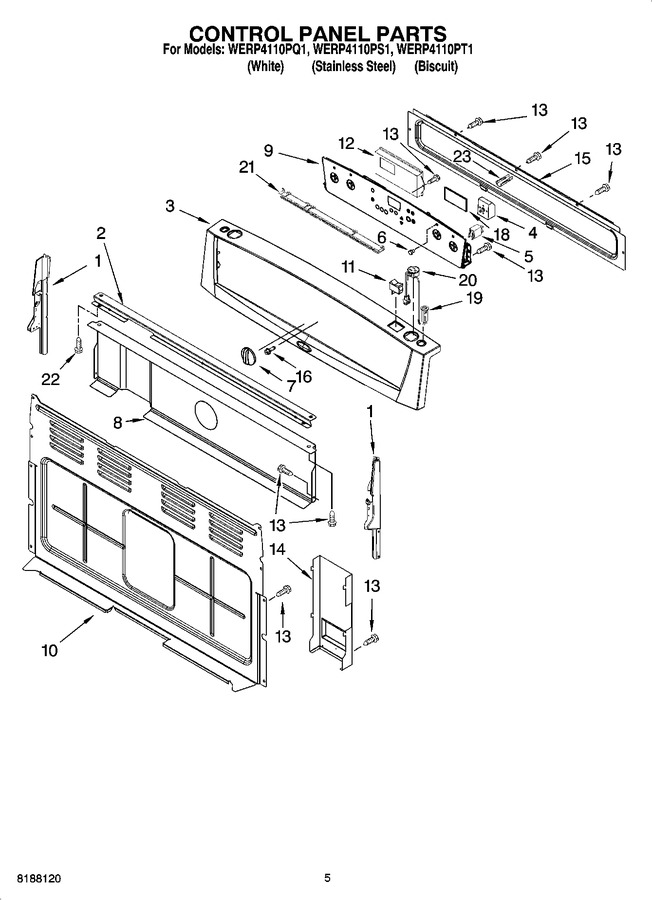

04 - Control Panel Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: 9757634) |
|
Immediately | $ 40.65 | ||||
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: 9757636) |
|
- | |||||
| 1 | 9757635 | Endcap (biscuit Left Hand) |
|
- | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: 9757631) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: 9757632) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: 9757633) |
|
Immediately | $ 138.45 | ||||
| 2 | 9756364 | Bracket, Console |
|
- | |||||
| 3 | 9757994 | Panel, Backguard (white) |
|
- | |||||
| 3 | 9757993 | Panel, Backguard (stainless Steel) |
|
$ 168.75 | |||||
| 3 | 9757996 | Panel, Backguard (biscuit) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | 9758129 | Knob, Infinite (4) (black) |
|
$ 23.80 | |||||
| 7 | 9757132 | Knob, Infinite (4) (white) |
|
$ 106.47 | |||||
| 7 | 9757626 | Knob, Infinite (4) (biscuit) |
|
$ 47.42 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | 9758468 | Bracket, Control (white) |
|
$ 560.83 | |||||
| 9 | 9758469 | Bracket, Control (biscuit) |
|
- | |||||
| 9 | 9758470 | Bracket, Control (black) |
|
- | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9758907 | Switch, Rocker (white) |
|
$ 37.11 | |||||
| 11 | 9758909 | Switch, Rocker (biscuit) |
|
- | |||||
| 11 | 9758910 | Switch, Rocker (architect Grey) |
|
- | |||||
| 12 | 9760422 | Control, Range |
|
$ 176.10 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 9758283) |
|
$ 125.64 | |||||
| 15 | 9756366 | Cover, Rear (console) |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 18 | 9758486 | Card, Insulator |
|
- | |||||
| 19 | WP9757604 | Breaker, 15amp (architect Grey) (Replaces: 9757604) |
|
Immediately | $ 9.85 | ||||
| 19 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 19 | 9757603 | Breaker, 15amp (biscuit) |
|
$ 5.26 | |||||
| 20 | W10861164 | Receptacle (architect Grey) (Replaces: 9758892) |
|
Immediately | $ 16.62 | ||||
| 20 | 9758891 | Receptacle (biscuit) |
|
- | |||||
| 20 | 9758889 | Receptacle (white) |
|
$ 51.42 | |||||
| 21 | 9757358 | Reflector, Light |
|
- | |||||
| 22 | 3196166 | Screw (white) |
|
$ 6.62 | |||||
| 22 | 98008169 | Screw (biscuit) (Replaces: 8281194) |
|
- | |||||
| 23 | 9757490 | Support, Glass |
|
- |
