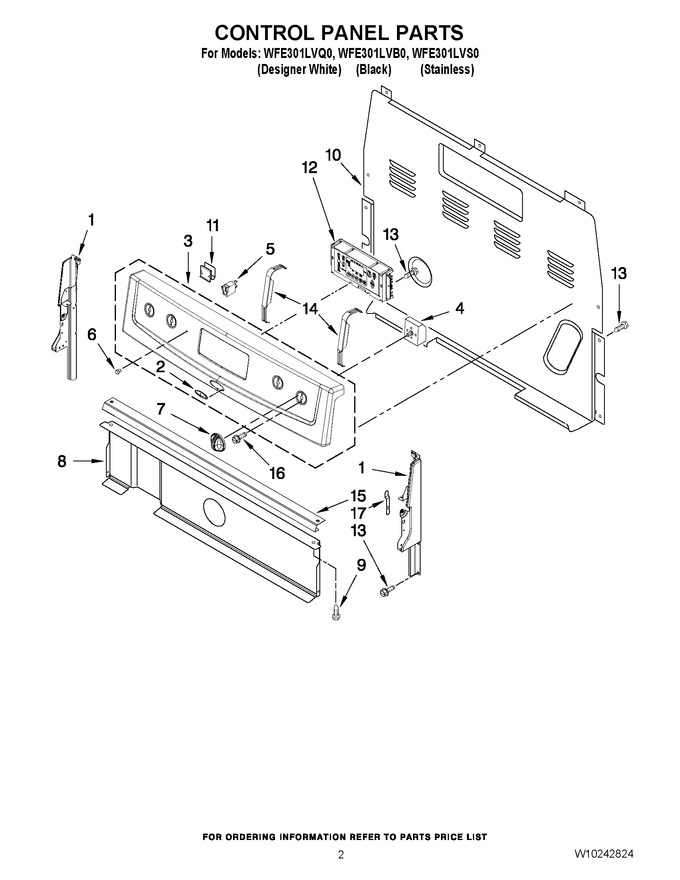

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219665		Endcap (black Lh)   (Replaces: W10184438)			Immediately	$ 40.65
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 38.21
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 54.75
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)			Immediately	$ 138.45
2	W10209617		Nameplate				$ 35.30
3	W10170634		Panel, Backguard (stainless)				$ 153.17
3	W10170632		Panel, Backguard (white)		Appelez-nous	-
3	W10170633		Panel, Backguard (black)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 62.56
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 49.03
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 5.63
7	WP9761964		Knob, Infinite (black)   (Replaces: 9761964)			Immediately	$ 20.07
7	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 18.59
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	3196166		Screw				$ 6.62
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
12	WPW10271747		Control, Range (black)   (Replaces: W10271747)			Immediately	$ 424.00
12	WPW10476684		Control, Range (white)   (Replaces: W10271746)			Immediately	$ 226.17
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	9762078		Brkt-mntg, Eoc				$ 38.13
15	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 88.97
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
17	3196200		Clip, Spring				$ 9.41

    View Diagram in Separate Window       Print Part List
