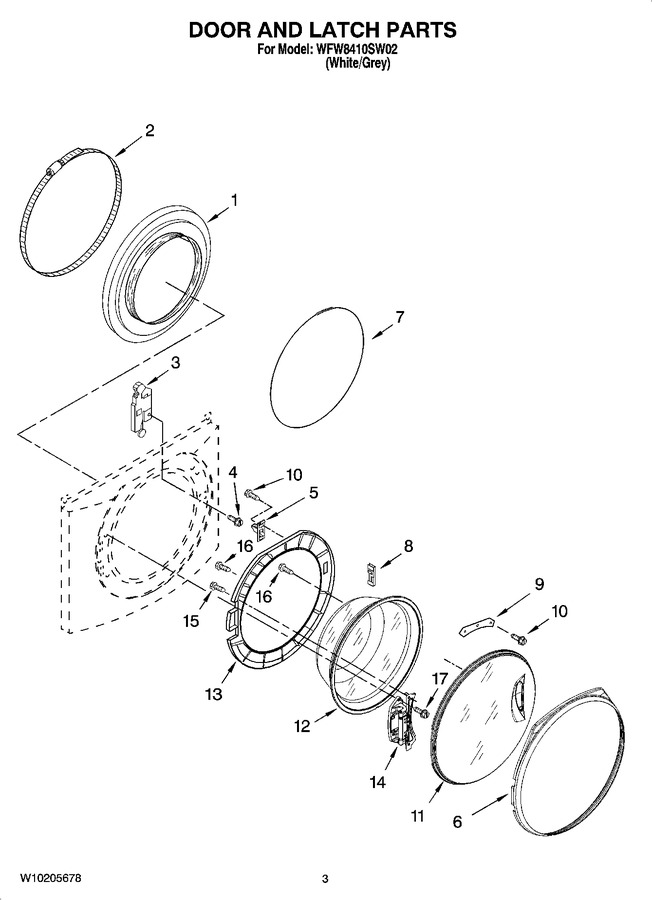

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10111435 | Bellow (Replaces: 8540952) |
|
Immediately | $ 175.11 | ||||
| 2 | WP8540108 | Clamp, Bellow (Replaces: 8540108) |
|
Immediately | $ 23.08 | ||||
| 3 | WPW10253483 | Lock, Door (Replaces: 8540772) |
|
Immediately | $ 247.73 | ||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
Immediately | $ 7.67 | ||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 11.15 | ||||
| 6 | 8540533 | Trim Ring, Outer Door |
|
$ 47.64 | |||||
| 7 | W11032829 | Clamp, Bellow (front) (Replaces: 8540107) |
|
Immediately | $ 20.07 | ||||
| 8 | WP8540115 | Clamp, Support (Replaces: 8540115) |
|
$ 6.57 | |||||
| 9 | W11665946 | Clamp, Glass (2) (Replaces: 8540114) |
|
$ 19.71 | |||||
| 10 | W11230114 | Screw (Replaces: 8540513) |
|
$ 12.55 | |||||
| 11 | 8540588 | Frame, Door Front Assembly |
|
$ 236.89 | |||||
| 12 | WPW10388315 | Glass, Door (Replaces: 8540428) |
|
$ 310.75 | |||||
| 13 | WPW10138523 | Frame, Door Back Support (Replaces: W10138523) |
|
$ 212.45 | |||||
| 14 | 8540416 | Hinge, Door |
|
- | |||||
| 15 | WP8181660 | Screw (Replaces: 8540284) |
|
$ 6.57 | |||||
| 16 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 17 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 10.34 |
