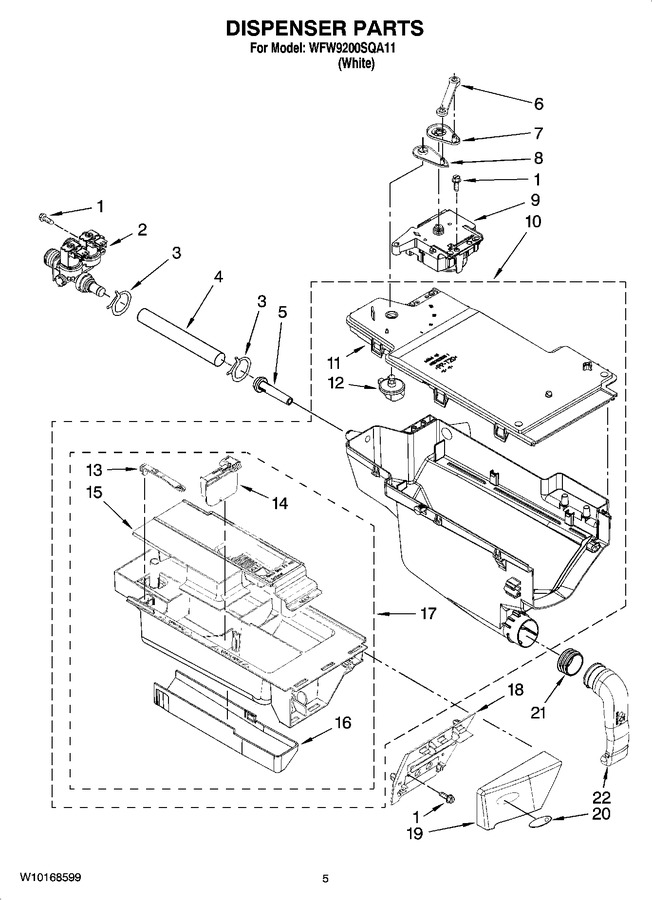

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8540282		Screw   (Replaces: 8540282)				$ 10.93
2	WP8540751		Valve, Water Inlet   (Replaces: 8540751)			Immediately	$ 68.99
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 7.94
4	W10803052		Hose - Valve/ Dispenser   (Replaces: 8540065)				$ 12.96
5	WP8183181		Nozzle, Inlet   (Replaces: 8540042)				$ 85.34
6	WP8183183		Lever, Connection   (Replaces: W10003830)				$ 85.27
7	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 85.27
8	WPW10161052		Lever, Water Distribution   (Replaces: W10003180)			Immediately	$ 6.80
9	WPW10352973		Actuator   (Replaces: W10065190)			Immediately	$ 150.08
10	W10074160		Dispenser, Complete (includes Item 8)		Appelez-nous	-
11	W10005080		Plate, Distribution		Appelez-nous	-
12	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 84.21
13	W10003170		Hook, Drawer		Appelez-nous	-
14	WPW10121596		Separator, With Selection Slider   (Replaces: W10015200)				$ 69.05
15	W10003150		Syphon, Bleach/softener		Appelez-nous	-
16	W10003140		Cover, Detergent Drawer				$ 80.92
17	WPW10015190		Drawer, Detergent (complete)   (Replaces: W10015190)				$ 110.57
18	WPW10156617		Bracket, Handle Fixation   (Replaces: 8183238)				$ 97.49
19	8183234		Handle, Drawer (includes Items 18 & 20)		Appelez-nous	-
20	8183253		Medallion				$ 27.06
21	WP8181747		Seal   (Replaces: W10003360)			Immediately	$ 24.60
22	WPW10005300		Tube, Dispenser To Bellow   (Replaces: W10005300)			Immediately	$ 20.03
