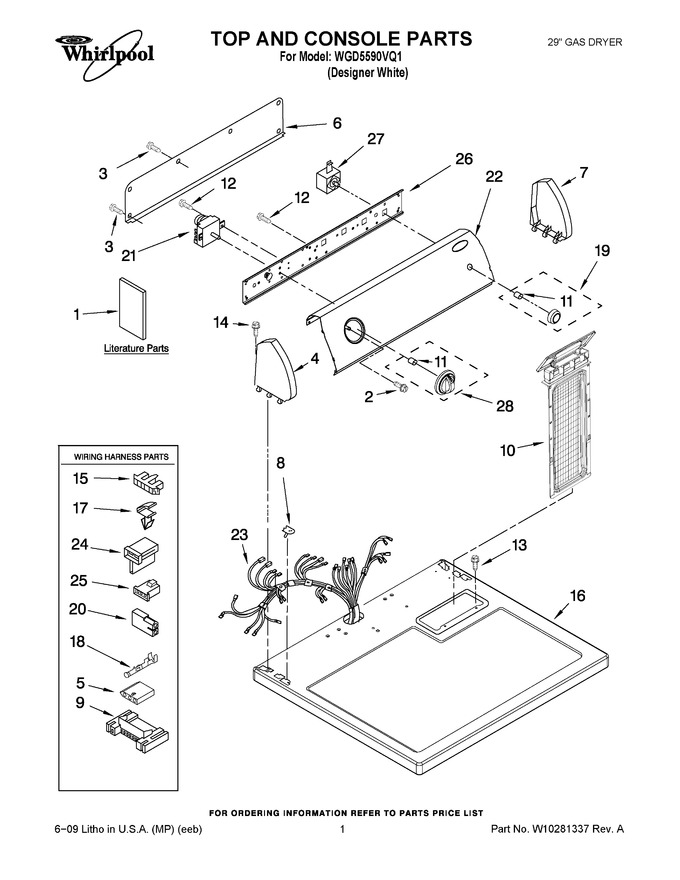

01 - Top And Console Parts
02 - Cabinet Parts
03 - 8318272 Burner Assembly
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10042960 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10150610 | Use & Care Guide |
|
- | |||||
| 1 | 8535900 | Installation Instructions |
|
- | |||||
| 1 | W10185979 | Wiring Diagram |
|
- | |||||
| 2 | 3400859 | Do-it-yourself Repair Manuals (screw, 8-18 X 7/32) (Replaces: 8533951) |
|
$ 12.49 | |||||
| 3 | WP693995 | Do-it-yourself Repair Manuals (screw, Hex Head) (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | 8271365 | Do-it-yourself Repair Manuals (cap, End (l.h.)) |
|
- | |||||
| 5 | 3936144 | Do-it-yourself Repair Manuals (connector) |
|
$ 19.10 | |||||
| 6 | W10103406 | Do-it-yourself Repair Manuals (panel, Rear Console) (Replaces: 8274261) |
|
$ 121.78 | |||||
| 7 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 8 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 9 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 10 | W10874409 | Screen, Lint (Replaces: 8557861) |
|
Immediately | $ 60.31 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 15 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 18 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.25 | |||||
| 19 | WP8566065 | Knob, Push-to-start (Replaces: 8566065) |
|
$ 49.77 | |||||
| 20 | 717252 | Receptacle, Latching (2-way) |
|
- | |||||
| 21 | WPW10185969 | Timer Assembly, 60 Hz. (Replaces: W10185969) |
|
$ 300.76 | |||||
| 22 | W10167874 | Panel, Control |
|
- | |||||
| 23 | W10186074 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 5.42 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 6.57 | |||||
| 26 | 8544895 | Bracket, Control |
|
- | |||||
| 27 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 28 | 8566061 | Timer Knob Assembly |
|
$ 26.93 |
