SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

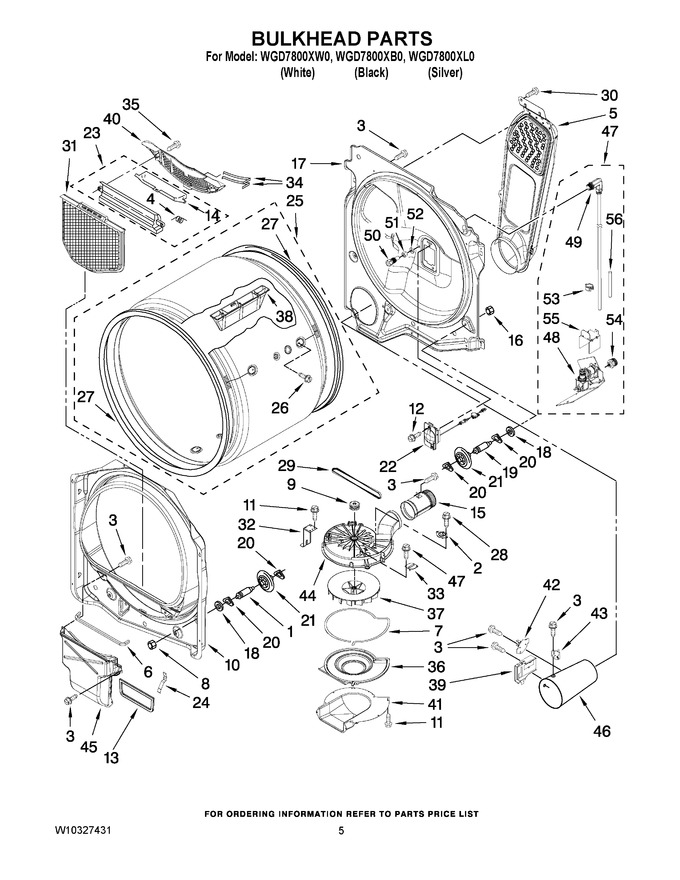

03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 58.79
2	WP8577274		Thermistor, Blower Housing   (Replaces: 8577274)			Immediately	$ 39.25
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.12
5	8544757		Air Duct Assembly		Appelez-nous	-
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.53
7	WP8573068		Seal, Blower Cover   (Replaces: 8573068)				$ 83.32
8	W11812294		Nut-3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 11.49
9	WP8544739		Pulley-blower   (Replaces: 8544739)				$ 119.94
10	WP8557244		Bulkhead Front   (Replaces: 8557244)				$ 300.21
11	W10853898		Screw   (Replaces: W10219342)				$ 7.36
12	WP488729		Screw, 8-15 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
13	8544721		Seal, Lint Duct				$ 5.65
14	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 192.52
15	8544755		Exhaust Pipe				$ 43.67
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 9.01
17	8557234		Bulkhead, Rear				$ 181.14
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 13.26
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 55.27
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 9.14
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 25.65
22	WPW10299173		Led Module   (Replaces: W10299173)				$ 247.97
23	W11129408		Outlet Housing Assembly   (Replaces: 3394985)			Immediately	$ 53.75
24	8573070		Clip, Lint Duct				$ 12.41
25	W10549614		Complete Drum Assembly   (Replaces: 8557269)				$ 450.37
26	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 7.92
27	280140		Seal, Drum   (Replaces: W10116344)			Immediately	$ 81.07
28	3350424		Screw				$ 11.45
29	WP8544742		Belt, Blower   (Replaces: 8544742)			Immediately	$ 49.50
30	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
31	W10120998		Lint Screen   (Replaces: W10049370)				$ 74.66
32	8544741		Bracket, Housing Blower (2)				$ 38.71
33	WP3390719		Thermal-fuse   (Replaces: 3390719)			Immediately	$ 28.55
34	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.58
35	WP3387230		Screw, 10-16 X 13/16   (Replaces: 3387230)			Immediately	$ 7.86
36	8544719		Cover, Blower (includes Item 7)				$ 76.29
37	WP8544737		Wheel, Blower   (Replaces: 8544737)			Immediately	$ 139.36
38	8563860		Baffle, Drum				$ 140.85
39	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
40	W11117302		Grille, Outlet   (Replaces: 8544723)			Immediately	$ 237.34
41	8544718		Duct-inlet Blower				$ 72.39
42	WP8573713		Thermal Cut-off   (Replaces: 8573713)			Immediately	$ 68.53
43	WP8573028		Thermostat, High-limit   (Replaces: 8573028)				$ 101.93
44	W10256512		Housing, Blower				$ 70.10
45	8544786		Lint Duct Assembly				$ 91.17
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 166.76
47	WPW10130506		Valve & Nozzle Assembly   (Replaces: W10130506)				$ 300.92
48	WPW10129424		Valve & Bracket Assembly   (Replaces: W10129424)				$ 211.46
49	W10410316		Nozzle & Hose Assembly (includes Items 50,51, & 52)   (Replaces: W10154992)				$ 116.92
50	WPW10277503		Nozzle & Screen Assembly   (Replaces: W10277503)				$ 230.09
51	W10044628		Nut, 9/16-24 X 1/32				$ 87.54
52	W10044579		Washer, Nozzle				$ 8.30
53	W10044599		Clip, Push-to-connect   (Replaces: W10044615)				$ 13.50
54	W10859554		Coupling, Hose   (Replaces: W10044605)				$ 77.45
55	W10160575		Cover, Myst Valve		Appelez-nous	-
56	W10159631		Sleeve, Tube		Appelez-nous	-
