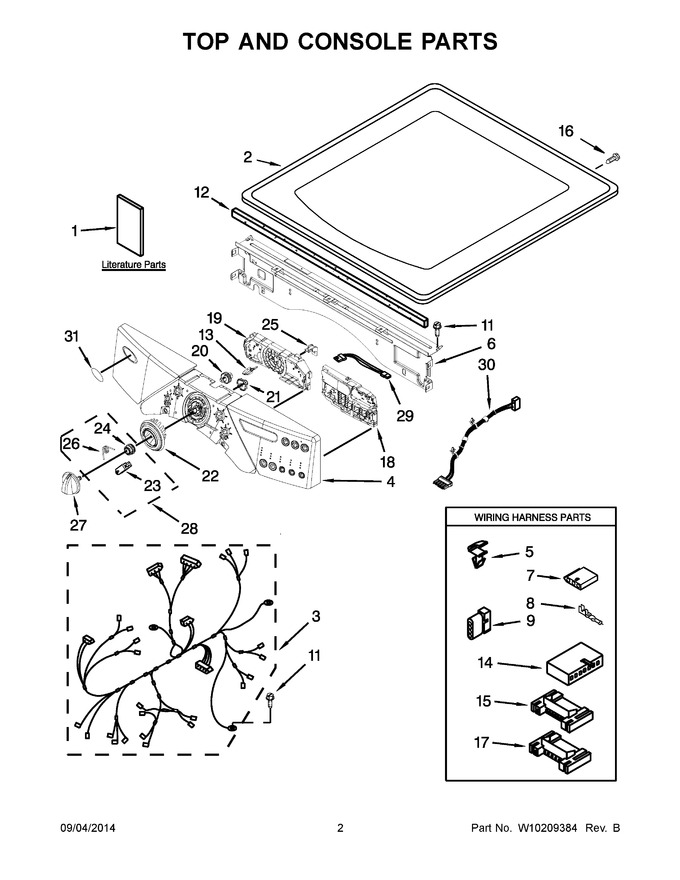

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10151593		Use & Care Guide		Appelez-nous	-
2	W10144446		Top (sapphire)				$ 45.23
3	W10111011		Harness, Main		Appelez-nous	-
4	W10191973		Panel, Console				$ 328.53
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
6	W10006840		Bracket, Console		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal, Female   (Replaces: 94614)				$ 8.05
9	3936144		Teminal				$ 21.22
10	94613		Terminal, Male		Appelez-nous	-
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
12	W10112267		Seal, Foam				$ 97.53
13	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
14	3936150		Circuit Connector				$ 77.60
15	3395683		Connector, Housing			Immediately	$ 54.45
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
17	2203186		Connector, 5-circuit				$ 13.18
18	W10031420		User Interface (right)		Appelez-nous	-
19	W10031410		User Interface (center)				$ 295.53
20	W10012430		Wheel Encoder				$ 21.85
21	W10012440		Retainer-snap				$ 12.36
22	W10012410		Knob, Light Ring				$ 21.84
23	W10012810		Rast, Wheel Holder		Appelez-nous	-
24	W10012450		Detent Wheel		Appelez-nous	-
25	W10112268		Clip-harness		Appelez-nous	-
26	W10012820		Knob, O-ring		Appelez-nous	-
27	W10116701		Knob, Control				$ 34.16
28	280230		Wheel				$ 141.57
29	W10095960		Harness, Communication				$ 142.18
30	W10111020		Power Cable, User Interface				$ 111.79
31	W10117943		Badge (whirlpool)		Appelez-nous	-
1A	W10177461		Tech Sheet		Appelez-nous	-
1B	W10111226		Guide, Quick Start		Appelez-nous	-
