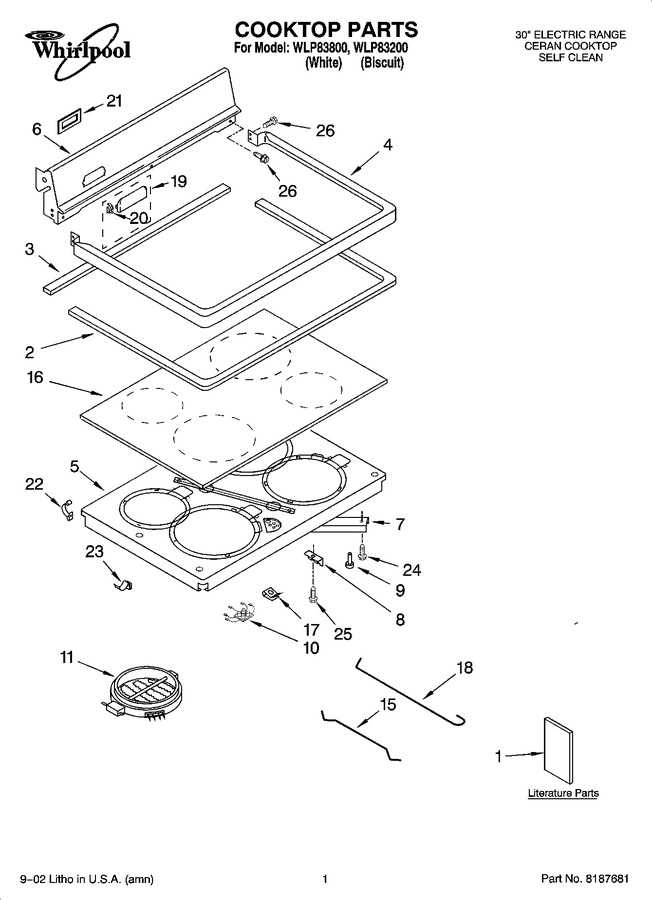

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9752766		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9782476		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9782477		Literature Parts (service Instr.)		Appelez-nous	-
1	LIT9752777		Literature Parts (installation Instructions)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 87.15
3	9781614		Rear Gasket				$ 47.02
4	9750456PW		Frame, Cooktop (white)		Appelez-nous	-
4	9750456PC		Frame, Cooktop (biscuit)		Appelez-nous	-
5	9781549		Support, Element		Appelez-nous	-
6	9752337GC		Back Splash (biscuit)		Appelez-nous	-
6	9752337GW		Back Splash (white)		Appelez-nous	-
7	9781553		Brace, Support		Appelez-nous	-
8	9753691		Support Clips (4)		Appelez-nous	-
9	238614		Bumper-white (4)   (Replaces: 9750969)				$ 76.31
10	9781937		Hot Light		Appelez-nous	-
11	W10823696		Element, Surface (2500w Lf)   (Replaces: 8523692)			Immediately	$ 192.83
11	W10823699		Element, Surface (1500w - Lr)   (Replaces: 8523697)			Immediately	$ 152.96
11	W10823697		Element, Surface (2200w - Rr)   (Replaces: 8523694)				$ 342.51
11	W10823698		Element, Surface (1800w - Rf)   (Replaces: 8523696)			Immediately	$ 213.08
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
16	9781583		Cooktop, Ceran (white)		Appelez-nous	-
16	9754093		Cooktop, Ceran (biscuit)				$ 358.75
17	WP9781235		Speed Nut   (Replaces: 9781235)				$ 11.30
18	9781459		Rod, Large Ceran Element		Appelez-nous	-
19	9753040CW		Cap, Vent (white)		Appelez-nous	-
19	9753040CC		Cap, Vent (biscuit)		Appelez-nous	-
20	3149190		Clip, Vent Cap		Appelez-nous	-
21	9750767		Gasket, Vent		Appelez-nous	-
22	WP98997		Clip, Wire   (Replaces: 98997)				$ 10.48
23	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.70
24	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
25	423248		Screw, 10-16 X 3/4		Appelez-nous	-
26	3149333		Screw, 10-16 X 1/2				$ 5.33
