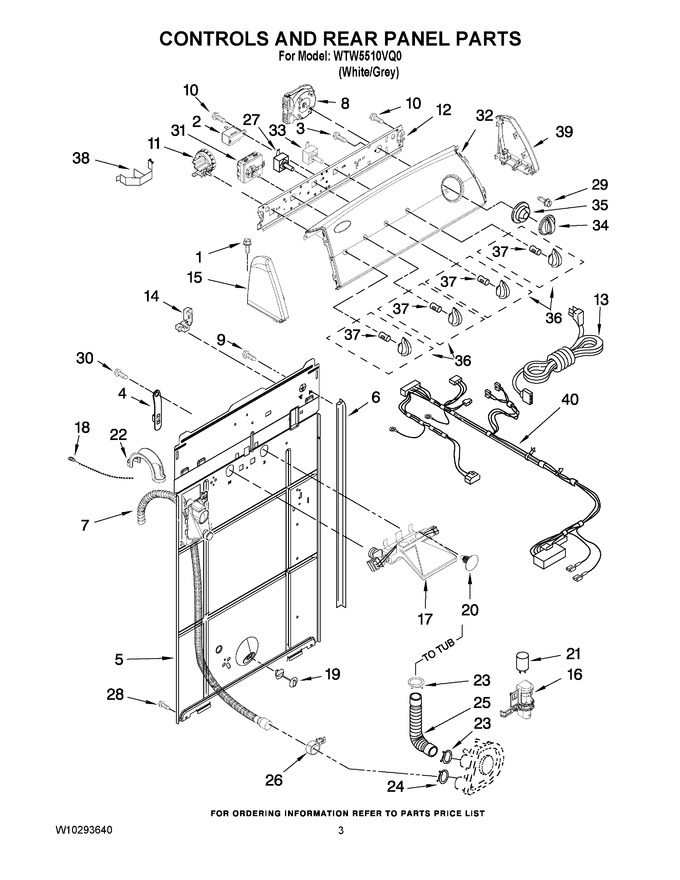

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP388326 | Screw, 8-18 X 1.25 (Replaces: 388326) |
|
$ 8.36 | |||||
| 2 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 3 | 3400073 | Screw, Ground |
|
- | |||||
| 4 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.35 | |||||
| 5 | WPW10194450 | Panel, Rear (Replaces: W10194450) |
|
$ 318.11 | |||||
| 6 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 24.81 | |||||
| 7 | WPW10189267 | Drain Hose Assembly Includes Item 26) (Replaces: W10189267) |
|
Immediately | $ 66.70 | ||||
| 8 | WPW10175553 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: W10175553) |
|
Immediately | $ 332.17 | ||||
| 9 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10337781 | Switch, Water Level (Replaces: 8577843) |
|
Immediately | $ 161.78 | ||||
| 12 | 8544893 | Bracket, Control |
|
$ 62.87 | |||||
| 13 | 3956162 | Cord, Power (includes Item 14) |
|
- | |||||
| 14 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 15 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 16 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 17 | WPW10144820 | Valve, Water Inlet W/thermistor & Vacuum Break (Replaces: W10144820) |
|
Immediately | $ 72.92 | ||||
| 18 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.47 | |||||
| 19 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.87 | ||||
| 20 | W10000080 | Push-in Retainer |
|
- | |||||
| 21 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 92.23 | ||||
| 22 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.53 | |||||
| 23 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.72 | ||||
| 24 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 25 | 285871 | Hose, Pump To Tub (includes Item 23) (Replaces: 3951449) |
|
Immediately | $ 26.09 | ||||
| 26 | 8541668 | Clamp, Hose |
|
$ 20.09 | |||||
| 27 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 122.63 | |||||
| 28 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.43 | |||||
| 29 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.93 | |||||
| 30 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 31 | WPW10184148 | Switch, Water Temperature (atc) (Replaces: W10184148) |
|
Immediately | $ 102.08 | ||||
| 32 | W10196932 | Panel, Console |
|
- | |||||
| 33 | WPW10168257 | Switch-rotary (Replaces: 3949180) |
|
$ 126.00 | |||||
| 34 | WP8566022 | Knob, Timer (Replaces: 8566022) |
|
$ 59.92 | |||||
| 35 | WP8566018 | Dial, Timer (Replaces: 8566018) |
|
$ 48.23 | |||||
| 36 | 8565944 | Knob, Control |
|
$ 25.10 | |||||
| 37 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 38 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 39 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 40 | W10234654 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
