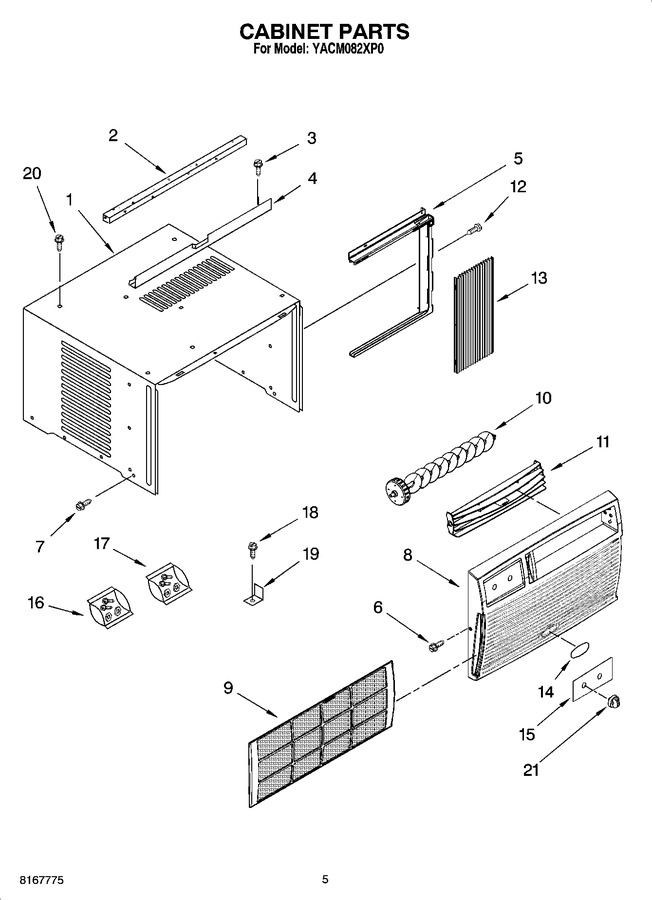

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 1 | 1187130 | Cabinet |
|
- | |||||
| 2 | 505168 | Tape, No Drip 30` |
|
- | |||||
| 2 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 3 | 479502 | Tape, Vinyl 36` |
|
$ 66.77 | |||||
| 3 | WP3390631 | Screw, 10-12 X .375 (Replaces: 309112) |
|
$ 7.43 | |||||
| 4 | 1187139 | Channel, Top |
|
- | |||||
| 4 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 5 | 99243 | Oil, Turbine 8 Fl. Oz. |
|
- | |||||
| 5 | 1187165 | Frame, Curtain (right Side) |
|
- | |||||
| 5 | 1187166 | Frame, Curtain (left Side) |
|
- | |||||
| 6 | 978029 | Valve, Access (5/8`` Tube O.d.) |
|
$ 93.85 | |||||
| 6 | 978030 | Valve, Access (3/4`` Tube O.d.) |
|
$ 123.53 | |||||
| 6 | WP978025 | Valve, Access (1/4`` Tube O.d.) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 6 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 6 | 978026 | Valve Access (5/16`` Tube O.d.) |
|
Immediately | $ 121.04 | ||||
| 6 | SF5538 | Valve, Access (3/8`` Tube O.d.) (Replaces: 978027) |
|
$ 16.79 | |||||
| 6 | 978028 | Valve, Access (1/2`` Tube O.d.) |
|
- | |||||
| 6 | WP3196557 | Screw (Replaces: 1168744) |
|
Immediately | $ 7.16 | ||||
| 7 | 488624 | Screw, 8-15 X .375 |
|
- | |||||
| 7 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 8 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 8 | 1187132 | Front |
|
- | |||||
| 8 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 8 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 8 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 8 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 8 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 8 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 9 | 1187133 | Filter |
|
$ 8.68 | |||||
| 9 | 813684 | Adhesive, Insulation (24 Oz. Spray) |
|
- | |||||
| 10 | 1187138 | Louver, Vertical |
|
- | |||||
| 10 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 104.81 | ||||
| 11 | 1187137 | Louver Horizontal |
|
- | |||||
| 12 | 212643 | Sealer, Permagum 4 - 1` Strips |
|
Immediately | $ 86.78 | ||||
| 12 | WP965173 | Screw, 8-18 X .375 (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 13 | 4318168 | Sealer, Permagum 1 Lb. Bar (Replaces: 99344) |
|
Immediately | $ 74.82 | ||||
| 13 | 1187167 | Curtain |
|
- | |||||
| 14 | 484069 | Cover, Winter (27 X 19 X 6 To 27``) |
|
$ 62.49 | |||||
| 14 | 484066 | Cover, Winter (28 X 19 X 31``) |
|
$ 86.51 | |||||
| 14 | WP2213265 | Nameplate (Replaces: 1187169) |
|
Immediately | $ 83.86 | ||||
| 14 | 484067 | Cover, Winter (19``x12``x14``) |
|
$ 85.58 | |||||
| 14 | 484184 | Cover, Winter (22``x15``x3 To 18``) |
|
$ 64.85 | |||||
| 15 | 813610 | Retainer, Cord (winter Cover) |
|
$ 5.71 | |||||
| 15 | 1187162 | Escutcheon |
|
- | |||||
| 16 | 4388785 | Return Bend Replacementkit (3/8 Inch Tube) |
|
- | |||||
| 16 | 4388784 | Return Bend Replacementkit (5/16 Inch Tube) |
|
- | |||||
| 16 | 1187644 | Bag, Accessory |
|
- | |||||
| 17 | 1185948 | Bag, Accessory (for Curtains) |
|
- | |||||
| 18 | 488255 | Screw, Wood 8-15 X .750 |
|
- | |||||
| 19 | 644228 | Bracket, Window Lock |
|
- | |||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 21 | 1187163 | Knob, Control |
|
$ 33.97 |
