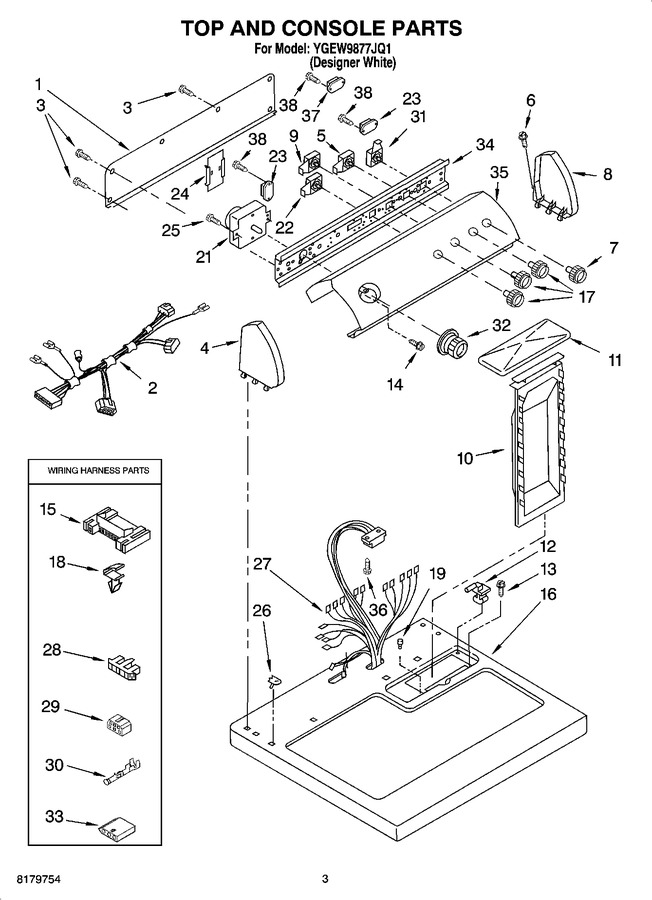

01 - Cabinet Parts
02 - Top And Console Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 2 | 8283135 | Harness, Console |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3405151 | Switch, Signal |
|
$ 193.40 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | 3957804 | Knob, Push To Start (Replaces: 8271341) |
|
$ 47.60 | |||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | 3405152 | Switch, Wrinkle Shield |
|
$ 117.96 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 41.46 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.30 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.30 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3400859 | Screw, Grounding |
|
$ 12.49 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | 8271390 | Top |
|
- | |||||
| 17 | WP3957799 | Knob, Control (Replaces: 8271339) |
|
$ 49.55 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 19 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 21 | WP8299771 | Timer, 60 Hz. (Replaces: 8299771) |
|
Immediately | $ 313.08 | ||||
| 22 | 8299970 | Switch, Temperature |
|
$ 193.95 | |||||
| 23 | WP3405281 | Power Relay (2) (Replaces: 3405281) |
|
Immediately | $ 49.37 | ||||
| 24 | 3976623 | Control Board |
|
- | |||||
| 25 | WPW10139210 | Screw, Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 7.23 | |||||
| 26 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 27 | 8299898 | Harness, Wiring |
|
- | |||||
| 28 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 29 | 3347243 | Connector 6-circuit |
|
- | |||||
| 30 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 31 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 25.18 | ||||
| 32 | WP3957754 | Timer Knob Assembly (Replaces: 8312687) |
|
$ 56.57 | |||||
| 33 | 3936144 | Connector |
|
$ 19.10 | |||||
| 34 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 35 | 3977832 | Panel, Control |
|
- | |||||
| 36 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 37 | WP8566493 | Heat Relay (Replaces: 697812) |
|
$ 85.38 | |||||
| 38 | 3406839 | Dry Rack |
|
Immediately | $ 62.06 | ||||
| 38 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 60.01 | ||||
| 38 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3388228) |
|
$ 6.57 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 |
