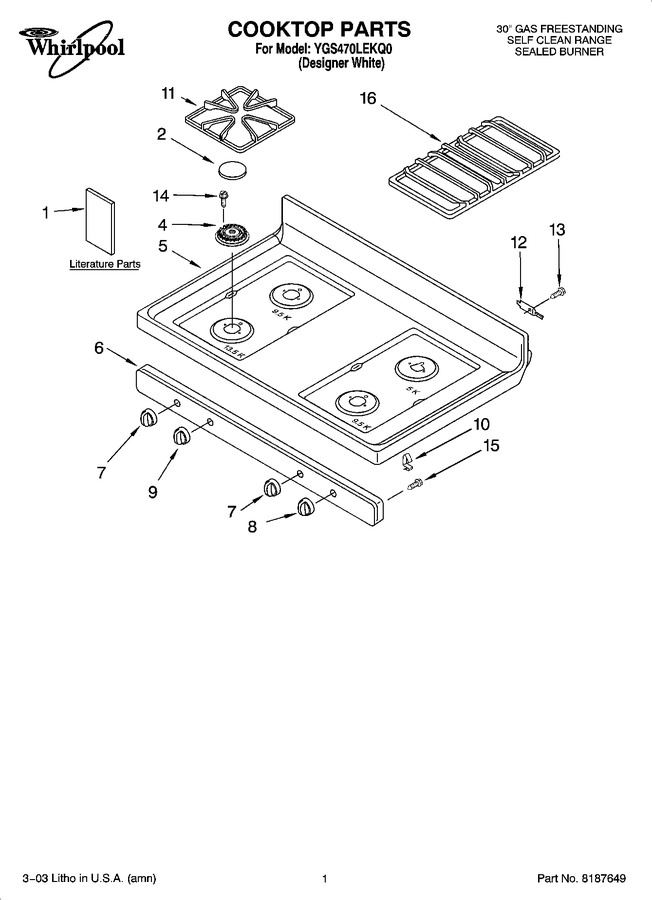

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Warming Drawer & Rack Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8523019 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8523153 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8522956 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523154F | Literature Parts (installation Instructions (french)) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (instruct, Install (template)) |
|
- | |||||
| 2 | 3191899 | Cap, Burner (rr) (grey) |
|
$ 31.21 | |||||
| 2 | WP3191905 | Cap, Burner Lf (grey) (Replaces: 3191905) |
|
$ 81.88 | |||||
| 2 | WP3191903 | Cap, Burner (lr - Rf) (grey) (Replaces: 3191903) |
|
$ 172.35 | |||||
| 4 | 8273216 | Burner (rr) |
|
- | |||||
| 4 | WP4455980 | Burner (lr, Rf) (Replaces: 8273215) |
|
$ 58.69 | |||||
| 4 | WP4455981 | Burner (lf) (Replaces: 8273214) |
|
Immediately | $ 82.71 | ||||
| 5 | 8272251 | Cooktop |
|
- | |||||
| 6 | WP8523854 | Panel, Manifold (Replaces: 8273025) |
|
$ 261.52 | |||||
| 7 | 8522623 | Knob, Control (2) |
|
$ 39.24 | |||||
| 8 | 8522625 | Knob, Accusimmer |
|
$ 69.56 | |||||
| 9 | 8522624 | Knob, Powerburner |
|
$ 17.09 | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: 8522850) |
|
Immediately | $ 269.60 | ||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 16 | 8522847 | Grate, Center (grey) |
|
- |
