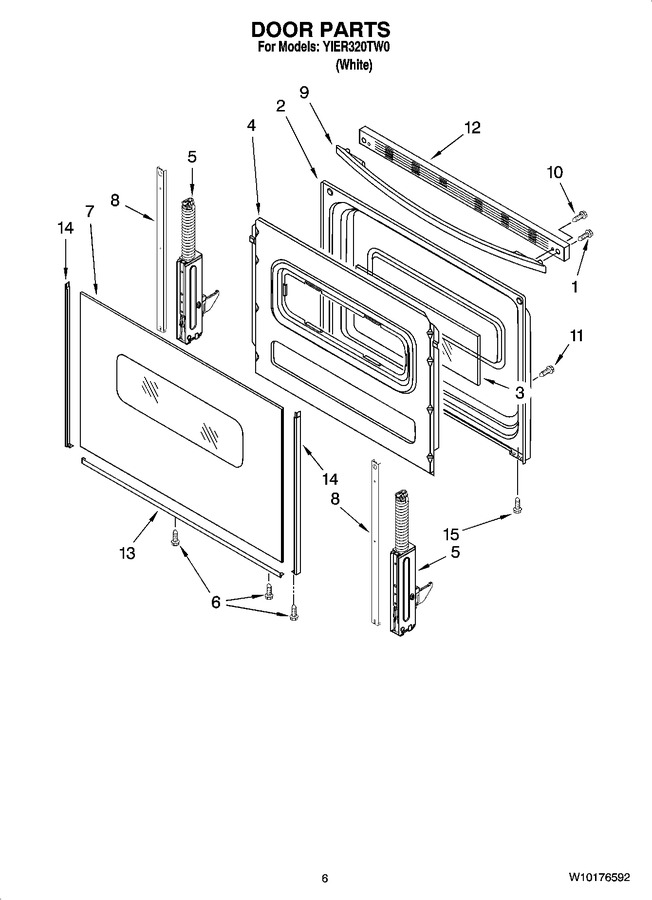

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 2 | 9761340 | Liner |
|
$ 325.01 | |||||
| 3 | WP9758163 | Glass, Inner (Replaces: 9758163) |
|
$ 145.91 | |||||
| 4 | 9761500 | Insulation, Door |
|
$ 293.06 | |||||
| 5 | W10347465 | Hinge (Replaces: 9761494) |
|
$ 108.34 | |||||
| 6 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 7 | WP9762476 | Glass, Outer Door (Replaces: 8053481) |
|
$ 299.39 | |||||
| 8 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 9 | 8522447 | Handle, Oven Door |
|
- | |||||
| 10 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 11 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 12 | W10016370 | Trim, Top |
|
$ 79.85 | |||||
| 13 | W11594186 | Trim, Lower (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 14 | WP8523166 | Trim, Side (white, Rh) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 14 | WP8523172 | Trim, Side (white, Lh) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 15 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 9756779 | Strain Relief |
|
- | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 | ||||||
| WPW10295595 | Harness, Cooktop (Replaces: 9761475) |
|
Immediately | $ 140.45 | |||||
| WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | ||||||
| W10146426 | Harness, Oven |
|
- | ||||||
| 3400964 | Clip, Wire Harness (Replaces: 3196520) |
|
$ 80.10 | ||||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 78.23 | ||||||
| W11244557 | Screw, Ground (Replaces: 3196173) |
|
$ 12.86 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 78.50 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 54.64 | |||||
| 9756350 | Cord, Power |
|
$ 60.82 | ||||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 25.69 |
