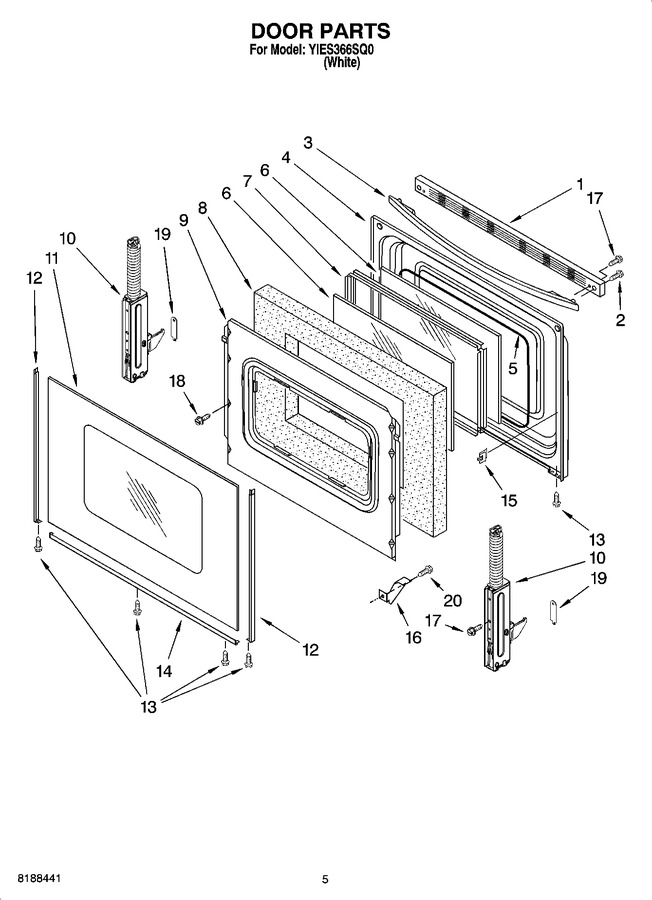

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8522433 | Trim, Door Top |
|
- | |||||
| 2 | WP3196164 | Mounting Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | 8522447 | Handle, Door |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 197.86 | ||||
| 11 | WP8053834 | Glass, Outer Door (Replaces: 8053480) |
|
$ 262.67 | |||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | W11594186 | Trim, Lower (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 16 | 3196794 | Bracket, Window |
|
$ 24.34 | |||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 18 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 19 | 9761517 | Clip, Dr Stop (2) |
|
$ 43.30 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 |
