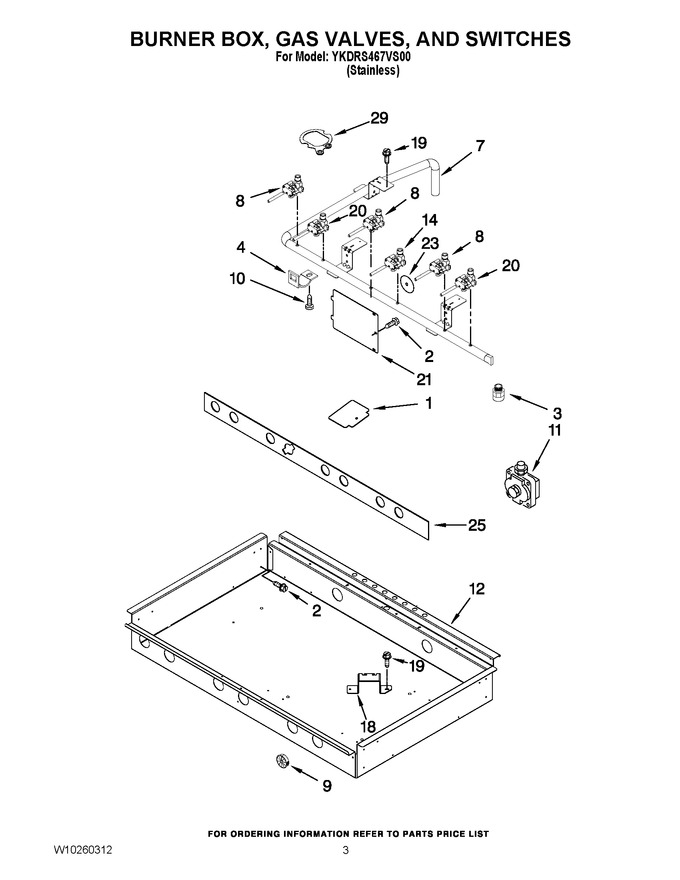

02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287036		Cover, Housing		Appelez-nous	-
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
3	4453116		Adapter (male)				$ 161.49
3	4453115		Adapter (female)				$ 114.03
4	W10189107		Bracket, Valve		Appelez-nous	-
7	W10115896		Manifold				$ 104.48
8	W10250407		Valve, Single (lr, Cf, Rr)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	W10293267		Regulator,pressure				$ 282.52
12	W10250425		Burner Box		Appelez-nous	-
14	WPW10385583		Valve, Single (cr)   (Replaces: W10284547)			Immediately	$ 298.89
18	W10280796		Bracket, Burner ( Rr)		Appelez-nous	-
18	W10115929		Bracket, Burner (lf, Lr & Rf)		Appelez-nous	-
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
20	WPW10371235		Valve, Gas Lf, Rf   (Replaces: W10250410)			Immediately	$ 298.94
21	W10115843		Cover, Ignition		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 9.00
25	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
29	8286930		Gasket, Orifice				$ 86.16
NI	W10115910		Tubing, Gas (cr)				$ 176.20
NI	W10115911		Tubing, Gas (lf, Rf)				$ 169.51
NI	W10269191		Regulator, Tube-pressure				$ 195.92
NI	W10115908		Tubing, Gas (lr, Cf, Rr)		Appelez-nous	-
