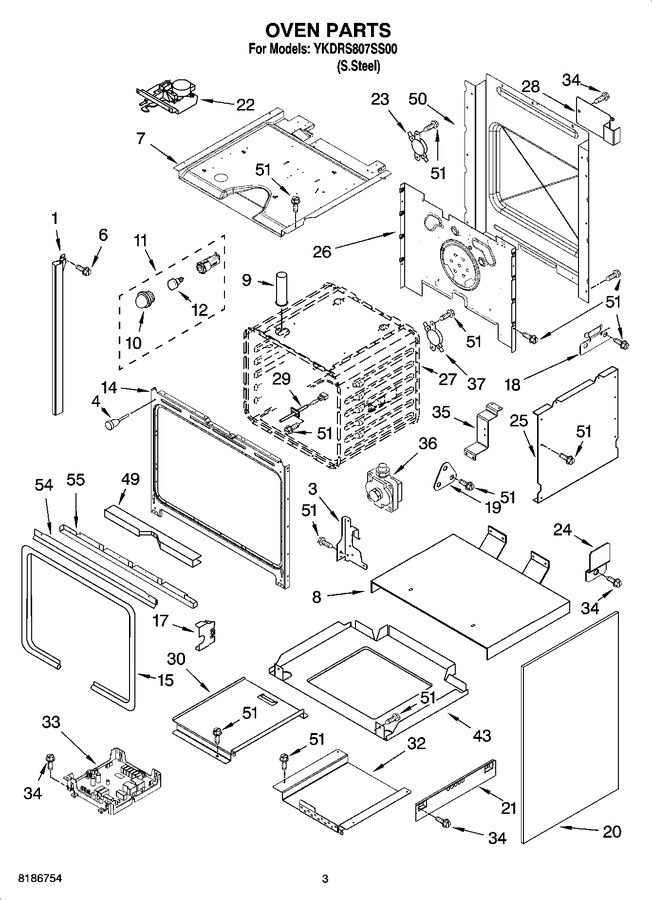

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10109510 | Trim, Side (left) |
|
- | |||||
| 1 | W10109560 | Trim, Side (right) |
|
- | |||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 4 | W10105790 | Bumper, Door (Replaces: 9760749) |
|
$ 6.67 | |||||
| 6 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 110.21 | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Oven Light Assy (Replaces: W10009930) |
|
$ 91.31 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 49.04 | ||||
| 14 | WPW10115831 | Frame, Front (Replaces: 9760756) |
|
$ 316.70 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: W10074200) |
|
Immediately | $ 67.10 | ||||
| 17 | 4452152 | Bracket, Mounting |
|
$ 31.66 | |||||
| 18 | 9757685 | Guide, Side Panel |
|
$ 36.23 | |||||
| 19 | 9757461 | Bracket, Side Panel |
|
$ 37.11 | |||||
| 20 | 9760723PB | Oven, Side Panel |
|
- | |||||
| 21 | 9757811 | Brace, Side Panel |
|
- | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 310.57 | ||||
| 23 | WP9757807 | Thermostat Spst (230) (Replaces: 9757807) |
|
Immediately | $ 101.00 | ||||
| 24 | 9759890 | Clip, Side Panel |
|
$ 9.71 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 135.62 | |||||
| 26 | 9759761 | Back, Chassis |
|
- | |||||
| 28 | 9759945 | Standoff, Rear |
|
$ 58.51 | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 94.50 | ||||
| 30 | 9756454 | Bracket, Goc |
|
$ 68.50 | |||||
| 32 | W10083460 | Slide, Goc |
|
- | |||||
| 33 | 9761801 | Central, Appliance |
|
- | |||||
| 34 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 35 | 9763491 | Brkt, Regulator |
|
- | |||||
| 36 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 306.39 | ||||
| 37 | WP9759242 | Thermostat (tod) (temp.) Spst 130c (Replaces: 9759242) |
|
Immediately | $ 77.01 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.37 | |||||
| 50 | 9758583 | Cover, Back |
|
$ 215.30 | |||||
| 51 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 54 | 9756481SS | Vent, Bottom Upper (s. Steel) |
|
- | |||||
| 55 | 9756470 | Insulation, Back |
|
$ 68.08 | |||||
| 55 | W10104870 | Trim, Bottom Vent |
|
- | |||||
| 55 | 9756817 | Insulation, Wrap |
|
$ 76.03 |
