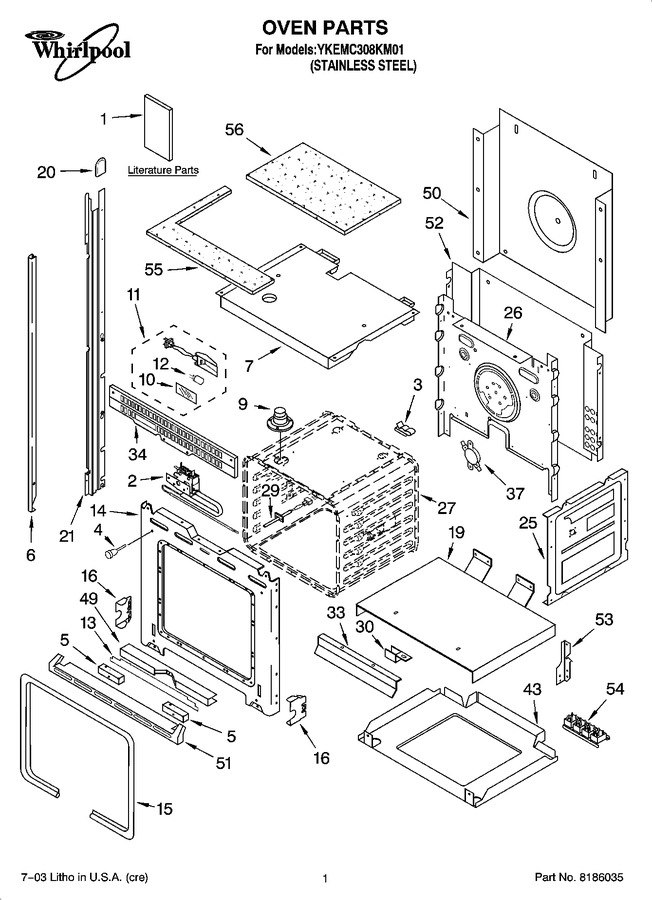

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8302003		Literature Parts (tech Sheet (french))		Appelez-nous	-
1	LIT8300889		Literature Parts (use & Care Guide Microwave (french))		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide (english))		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT8302002		Literature Parts (tech Sheet (english))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4448687		Literature Parts (easy Set Guide (french))		Appelez-nous	-
1	LIT4455987		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4451052		Literature Parts (installation Instructrions (english))		Appelez-nous	-
1	LIT8301038		Literature Parts (installation Instructrions (french))		Appelez-nous	-
1	LIT4456573		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT4456576		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT8300890		Literature Parts (use & Care Guide Microwave (english))		Appelez-nous	-
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
2	4450812		Safety Switch (oven Temp)				$ 177.31
3	98005642		Clip, Bulb   (Replaces: 313382)			Immediately	$ 78.37
4	4448520		Bumper, Door				$ 20.03
5	4452490		Spacer, Foam				$ 34.83
6	4452084		Trim, Side (lh)		Appelez-nous	-
6	WP694091		Screw   (Replaces: 694091)				$ 6.80
6	4452083		Trim, Side (rh)		Appelez-nous	-
7	4455865		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 110.21
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 12.81
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 103.38
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 63.62
13	4452337		Insulation Bottom Vent		Appelez-nous	-
14	4455612		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.90
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 67.10
16	4452152		Bracket, Mounting				$ 31.66
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
21	WP4448444		Grommet   (Replaces: 4448444)				$ 7.07
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 135.62
26	4452234		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 94.50
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
30	4449845		Bracket-support		Appelez-nous	-
33	4452496		Deflector, Vent		Appelez-nous	-
34	4451667		Vent, Center		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 7.47
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 53.60
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
43	4455530		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.37
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 135.06
51	4455147		Trim, Bottom				$ 96.52
51	4450289		Screw		Appelez-nous	-
52	4451756		Chassis, Back		Appelez-nous	-
53	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
53	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
54	WP9752759		Relay, Double Line Break   (Replaces: 9752759)			Immediately	$ 181.05
54	4451393		Bracket, Relay		Appelez-nous	-
55	4452492		Insulation, Convection Top		Appelez-nous	-
56	4450365		Insulation, Back				$ 70.95
56	4452491		Insulation, Convection Grill		Appelez-nous	-
56	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 112.37
