View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

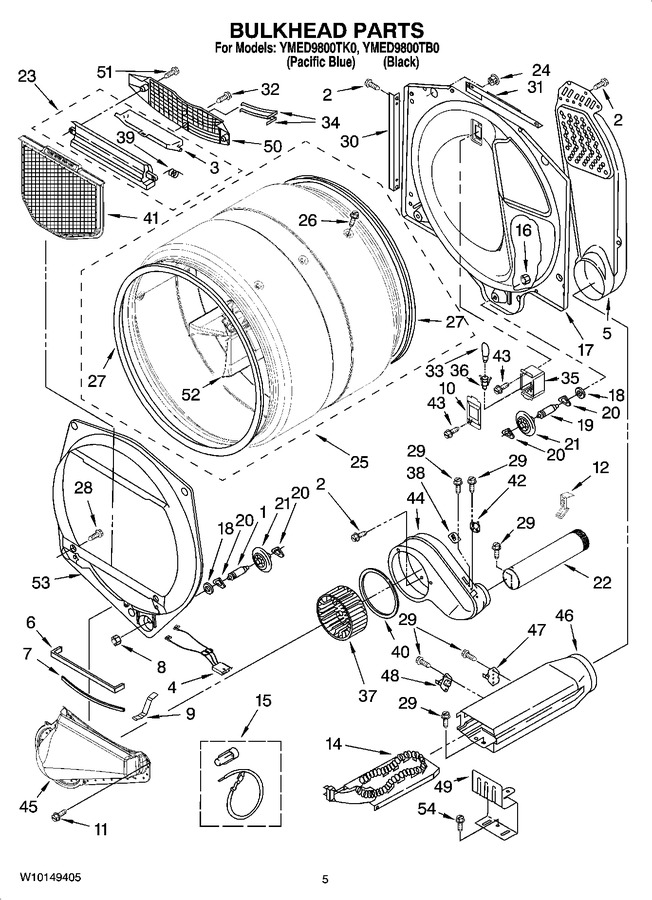

03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 55.99 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 192.52 | ||||
| 4 | WP3406653 | Harness, Sensor (Replaces: 3406653) |
|
Immediately | $ 143.60 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | WP8066208 | Clip, Spring (Replaces: 8066208) |
|
$ 7.95 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 11 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.43 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 7.35 | |||||
| 14 | WP3387747 | Heater Element (Replaces: 3387747) |
|
Immediately | $ 84.77 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | WPW10080190 | Nut (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 234.13 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | 279936 | Exhaust Pipe (Replaces: 8563745) |
|
$ 138.76 | |||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
$ 51.20 | |||||
| 24 | 8529007 | Plug, Rear Bulkhead |
|
$ 70.98 | |||||
| 25 | W10545924 | Complete Drum Assembly (Replaces: W10113138) |
|
$ 411.13 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 7.92 | ||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 28 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 29 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 30 | 8519221 | Channel Bracket, Rear Bulkhead (2) |
|
- | |||||
| 31 | W10118337 | Bracket, Upper Rear Bulkhead (Replaces: 8571651) |
|
- | |||||
| 32 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 33 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.25 | ||||
| 35 | 3977373 | Bracket, Drum Light |
|
$ 99.97 | |||||
| 36 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 69.13 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 73.78 | ||||
| 38 | WP3392519 | Thermal Fuse (91`c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 40 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 41 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 74.66 | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 96.11 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 195.73 | |||||
| 46 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 180.98 | ||||
| 47 | 279973 | Thermal Cut-off (includes Illus. 48) (Replaces: 8318314) |
|
Immediately | $ 68.04 | ||||
| 48 | WP3391914 | Thermostat 295~f (146~c) (Replaces: 3391914) |
|
Immediately | $ 107.52 | ||||
| 49 | 8066099 | Bracket, Heater Box |
|
$ 24.13 | |||||
| 50 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 33.21 | ||||
| 51 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 52 | W11782150 | Baffle, Drum (Replaces: W10113136) |
|
Immediately | $ 86.01 | ||||
| 53 | 8519245 | Bulkhead, Front |
|
- | |||||
| 54 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 |
